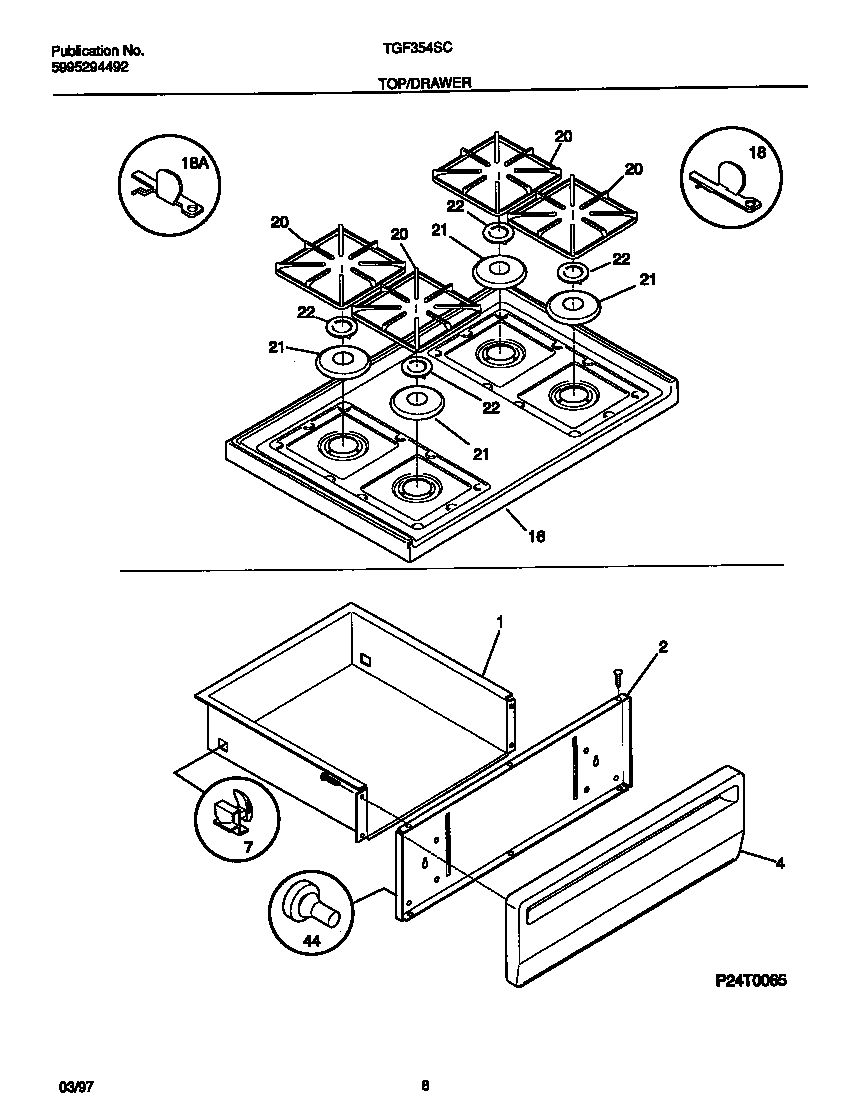

TGF354SCDD 05 – TOP/DRAWER

TGF354SCDD 05 – TOP/DRAWER

Written by

in

TGF354SCDD 05 – TOP/DRAWER

Products

PositionProduct
*28054WCI 5303280311
*28053WCI 316089600
*28052Screw,cup pt ,8-18 x 0.375 ,chrome
*28056131243700 Frigidaire Screw
*28055WCI 5303281584
*28051316021105 Frigidaire Oven Screw
*28050RIVET-POP, WARING-PLATE
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084406
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4316021109 Frigidaire Oven Screw
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16WCI 316010409
16BGUSSET-MTG (LH) (NON-ILLUSTRATED)
16AGUSSET-MTG (RH) (NON-ILLUSTRATED)
18BRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
20WCI 316085201
21TRIM RING-BURNER, BLACK, SMALL, (4)
22316010901 Frigidaire Burner Cap P1
443131903 Frigidaire Door/Drawer Bumper
