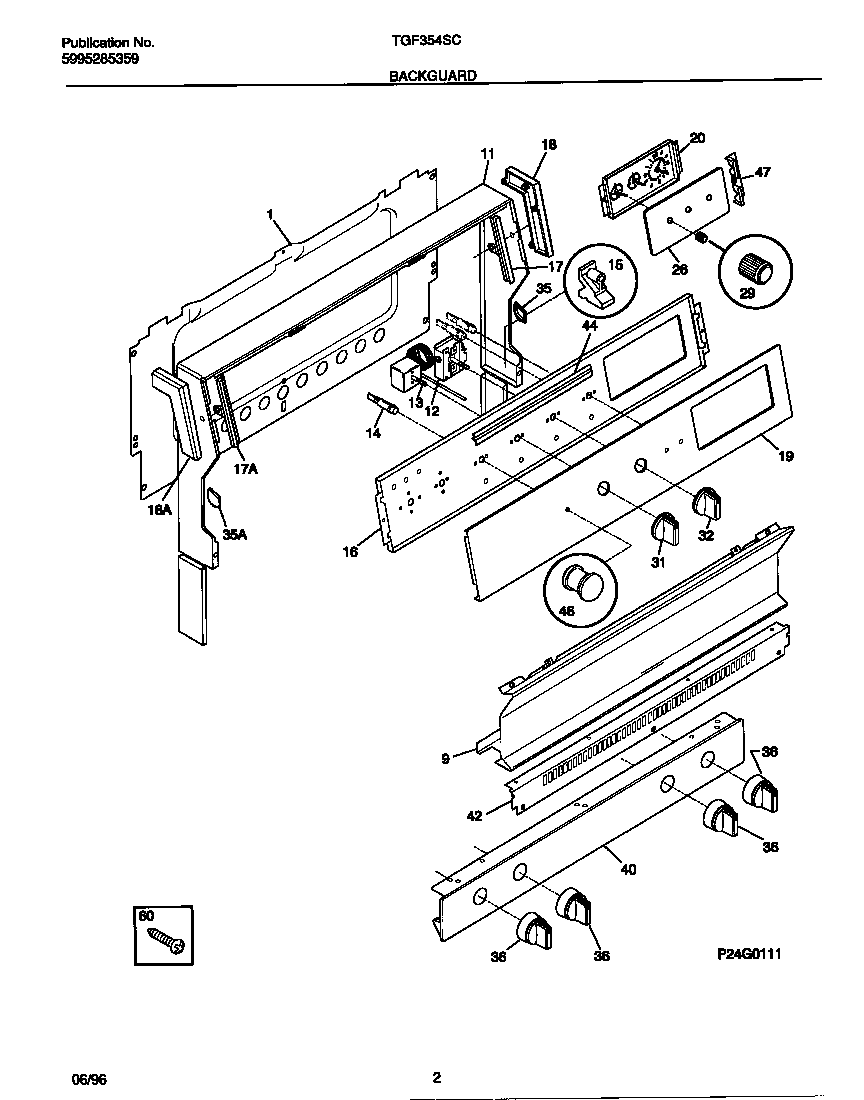

TGF354SCWC 02 – BACKGUARD

TGF354SCWC 02 – BACKGUARD

Written by

in

TGF354SCWC 02 – BACKGUARD

Products

PositionProduct
*90280316021105 Frigidaire Oven Screw
*90282WCI 316001450
*90284WCI 5303272555
*90281WCI 3204745
*90283Screw,cup pt ,8-18 x 0.375 ,chrome
*90285WCI 5303281584
1SHIELD-BACKGUARD,REAR WALL
9WCI 316043501
11WCI 3204755
12THERMOSTAT-BAKE
13WCI 316073301
14WCI 5308037896
15SUPPORT-BACKGUARD,(2)
16WCI 316042601
17TRIM-GLASS RETAINER,RH
17TRIM-GLASS RETAINER,LH
18WCI 5303272308
18WCI 5303272307
19WCI 316034553
20ELECTRICAL CLOCK
26WCI 3201695
29WCI 316029008
31WCI 316087232
32WCI 316087231
35CAP-RH
35CAP-LH
36WCI 316023020
40WCI 316086812
42WCI 316084300
44WCI 3131468
46Lens,indicator light ,red
47RETAINER, CLOCK GLASS, (2)
60WCI 5303289970
