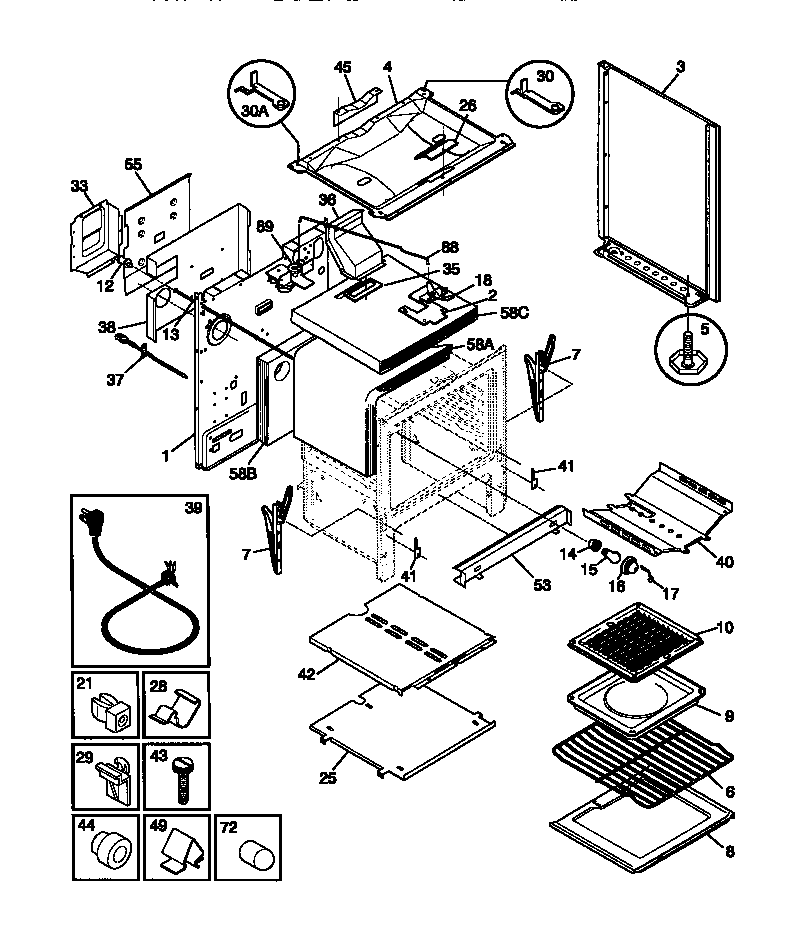

TGF356BCDA 04 – BODY

TGF356BCDA 04 – BODY

Written by

in

TGF356BCDA 04 – BODY

Products

PositionProduct
*31763WCI 5303281584
*31764WIRING HARNESS,CHASSIS
1WCI 316029410
2SHIELD-OVN TOP
3WCI 316081006
3DWCI 08067992
3AWCI 316081007
3BSHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3CFASTENER-EDGE MTG (NOT ILLUSTRATED)
4WCI 316011912
5B316116000 Frigidaire Screw
5AWCI 3934058
5SCREW-LEVELING
5CNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7WCI 316007002
7A3203010 Frigidaire Clip
8A316064600 Frigidaire Oven Support
8BTTM-OVEN
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3131313
26WCI 08067757
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP RH
30ABRACKET-HINGE, MAIN TOP, LH
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 5303272844
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
38WCI 316051701
395304515659 Frigidaire Oven Power Cord
39AWCI 08067961
40WCI 3200836
40ASCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
493205821 Frigidaire Clip
53SHIELD-FRONT
53A08067973 Frigidaire 0 Insulation
55WCI 316052601
58AWCI 316054200
58INSULATION, OVEN WRAPPER
58BINSULATION, OVEN TOP
72COVER-LIGHT/SWITCH ROD
88WCI 316026400
89WCI 316028101
