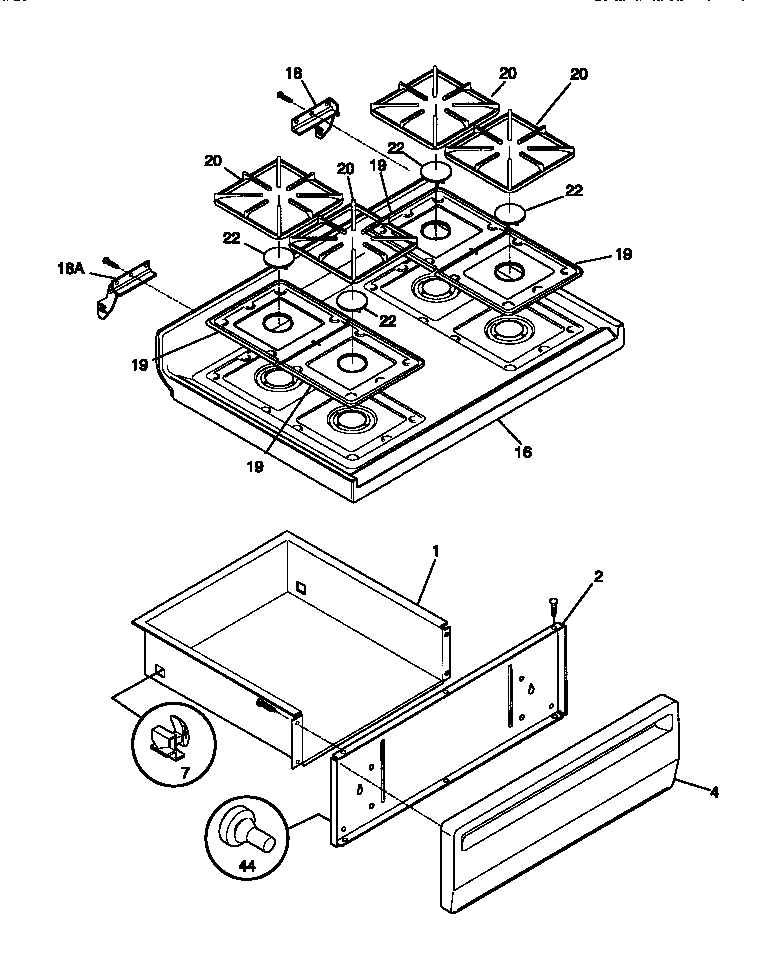

TGF356BCDA 05 – TOP/DRAWER

Products

Position	Product
*31765	RIVET-POP, WARING-PLATE
*31766	WCI 5303281584
*31768	WCI 5303288574
*31767	131243700 Frigidaire Screw
1	DRAWER-UTILITY
2	SHIELD-PNL
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	WCI 316084406
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16	WCI 5303301547
16B	GUSSET-MTG (LH) (NON-ILLUSTRATED)
16A	GUSSET-MTG (RH) (NON-ILLUSTRATED)
18A	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
19	WCI 316011401
20	WCI 316085201
22	316010901 Frigidaire Burner Cap P1
44	3131903 Frigidaire Door/Drawer Bumper
