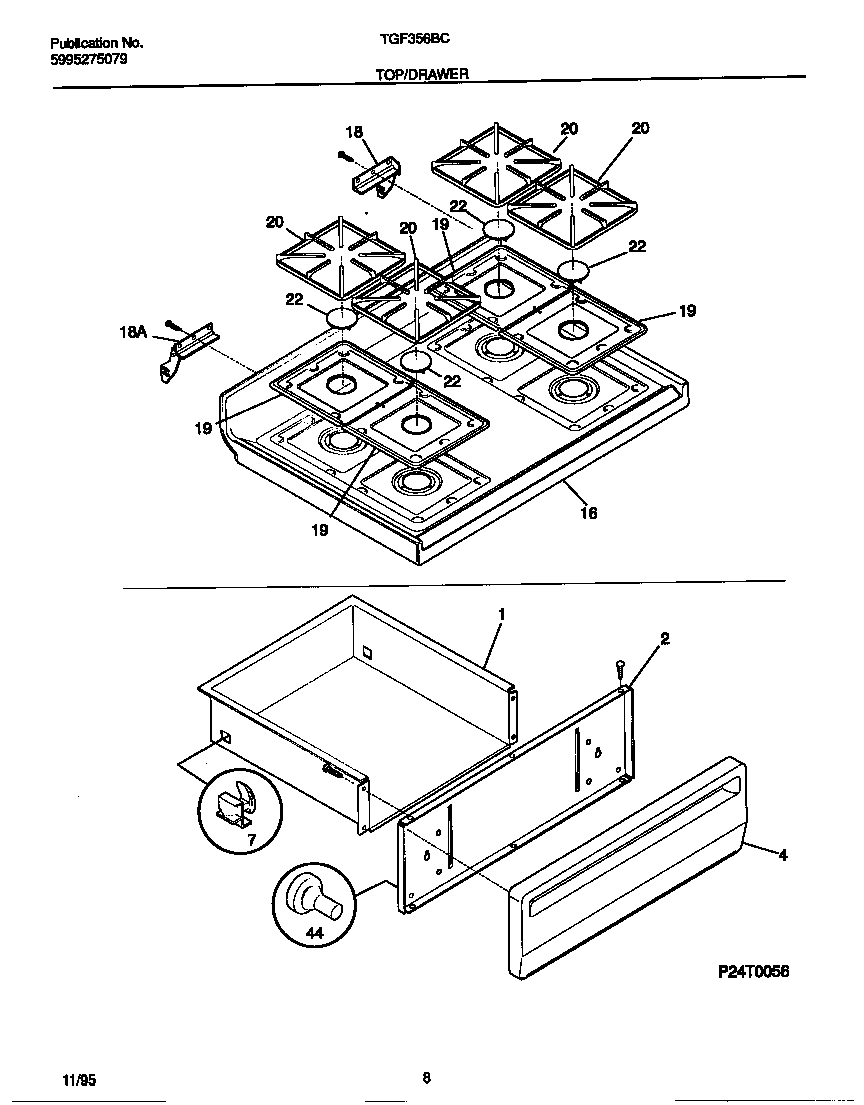

TGF356BCDB 05 – TOP/DRAWER

TGF356BCDB 05 – TOP/DRAWER

Written by

in

TGF356BCDB 05 – TOP/DRAWER

Products

PositionProduct
*31405RIVET-POP, WARING-PLATE
*31406WCI 5303281584
*31408WCI 5303288574
*31407131243700 Frigidaire Screw
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316084406
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16WCI 5303301547
16BGUSSET-MTG (LH) (NON-ILLUSTRATED)
16AGUSSET-MTG (RH) (NON-ILLUSTRATED)
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
19WCI 316011401
20WCI 316085201
22316010901 Frigidaire Burner Cap P1
443131903 Frigidaire Door/Drawer Bumper
