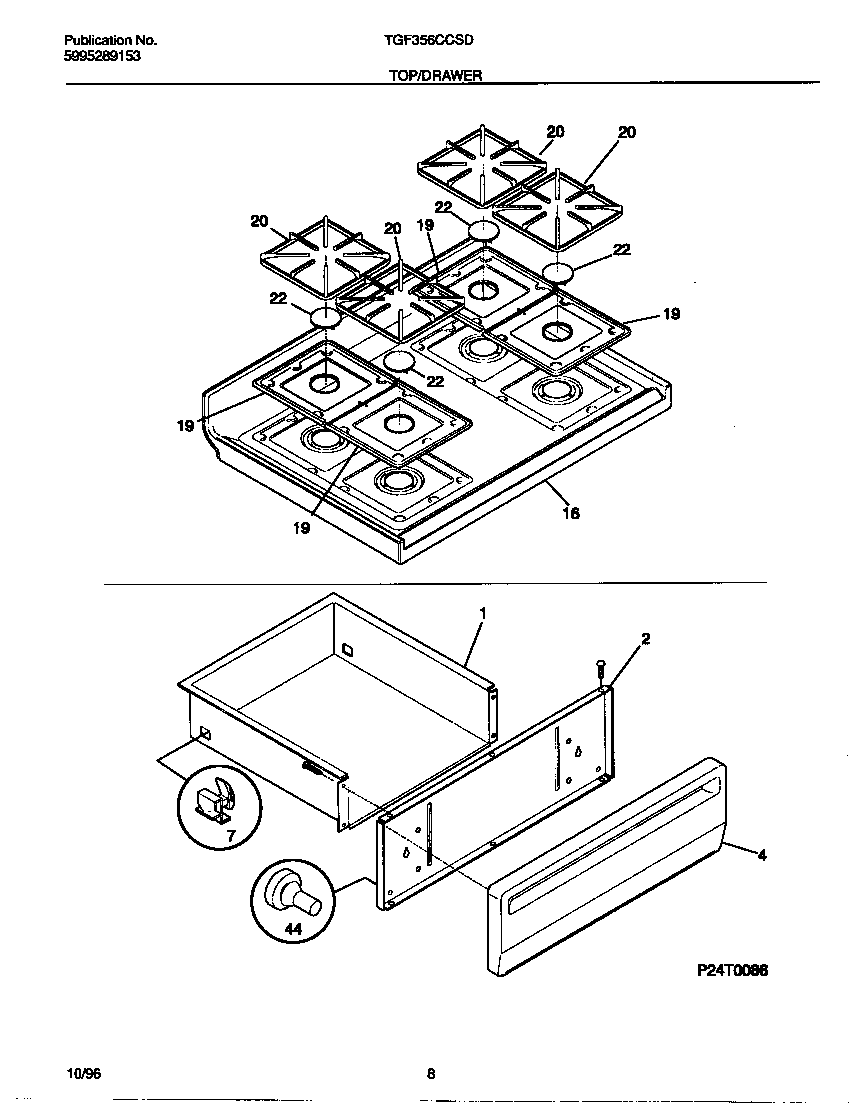

TGF356CCSD 05 – TOP/DRAWER

Products

PositionProduct
*90047RIVET-POP, WARING-PLATE
*90048Screw,cup pt ,8-18 x 0.375 ,chrome
*90051WCI 5303288574
*90050131243700 Frigidaire Screw
*90049WCI 5303280311
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316084405
4316021109 Frigidaire Oven Screw
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16GUSSET-MTG (RH) (NON-ILLUSTRATED)
16WCI 5303301546
16GUSSET-MTG (LH) (NON-ILLUSTRATED)
19Pan-burner,small ,gray
20WCI 316085202
22WCI 316010903
443131903 Frigidaire Door/Drawer Bumper
