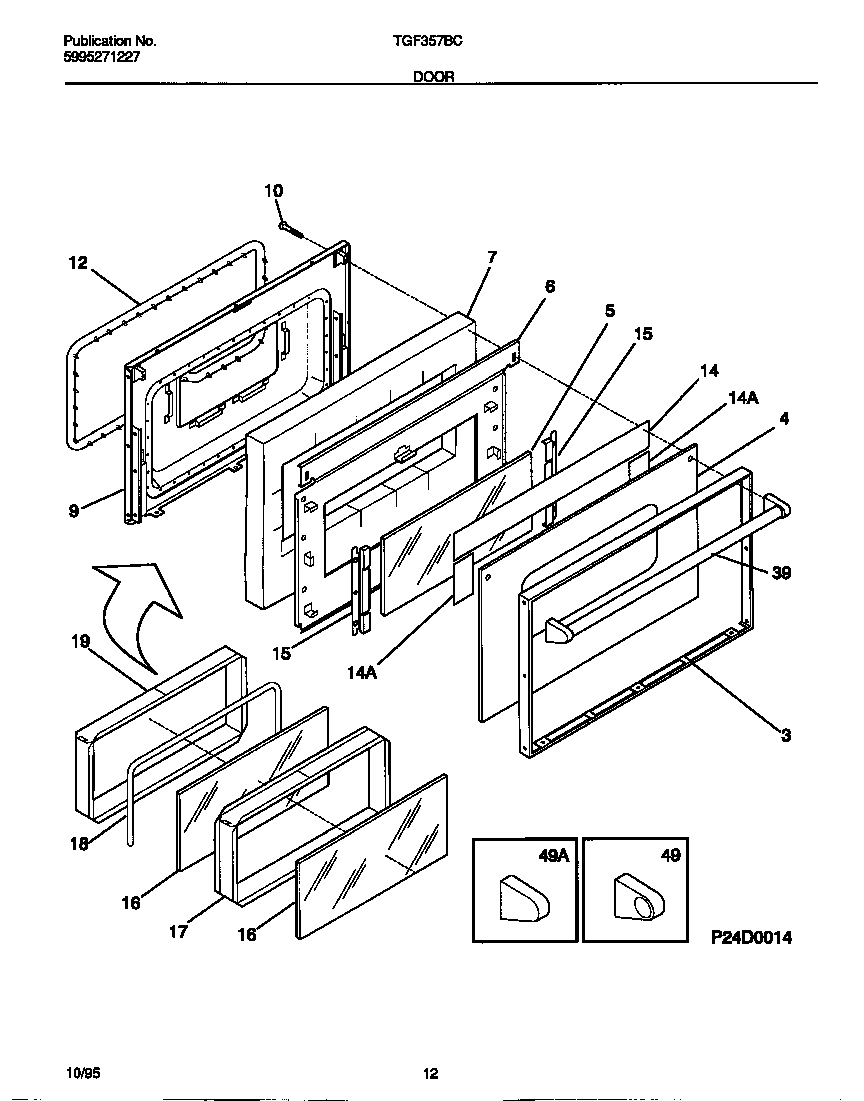

TGF357BCDA 06 – DOOR

Products

Position	Product
*39689	WCI 316065300
*39694	WCI 5303280311
*39693	5303271648 Frigidaire Oven Screw
*39696	131243700 Frigidaire Screw
*39695	5303285179 Frigidaire Oven Door Screw
*39691	5303300265 Frigidaire Oven Screw
*39692	WCI 5303269859
*39690	SCREW, CR PAN HD SEMS, 8-32BP X 1.00
3	WCI 316067802
4	GLASS-OVEN DOOR, BLACK, OUTER
5	GLASS-OVEN DOOR, INNER
6	SHIELD-INSULATION
7	WCI 316076400
9	WCI 316066603
10	SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375
12	5303131601 Frigidaire Oven Seal
14	5303208655 Frigidaire Reflector Assembly
14	REFLECTOR, ALUMINUM FOIL
15	BRACKET-GLASS MTG
16	GLASS-OVEN DOOR, HEAT BARRIER, (2)
17	WCI 5303209517
18	SEAL-ROPE, 0.25 DIA
19	WCI 316067600
39	HANDLE-DOOR, OVEN
49	WCI 5303307192
49	WCI 5303307193
