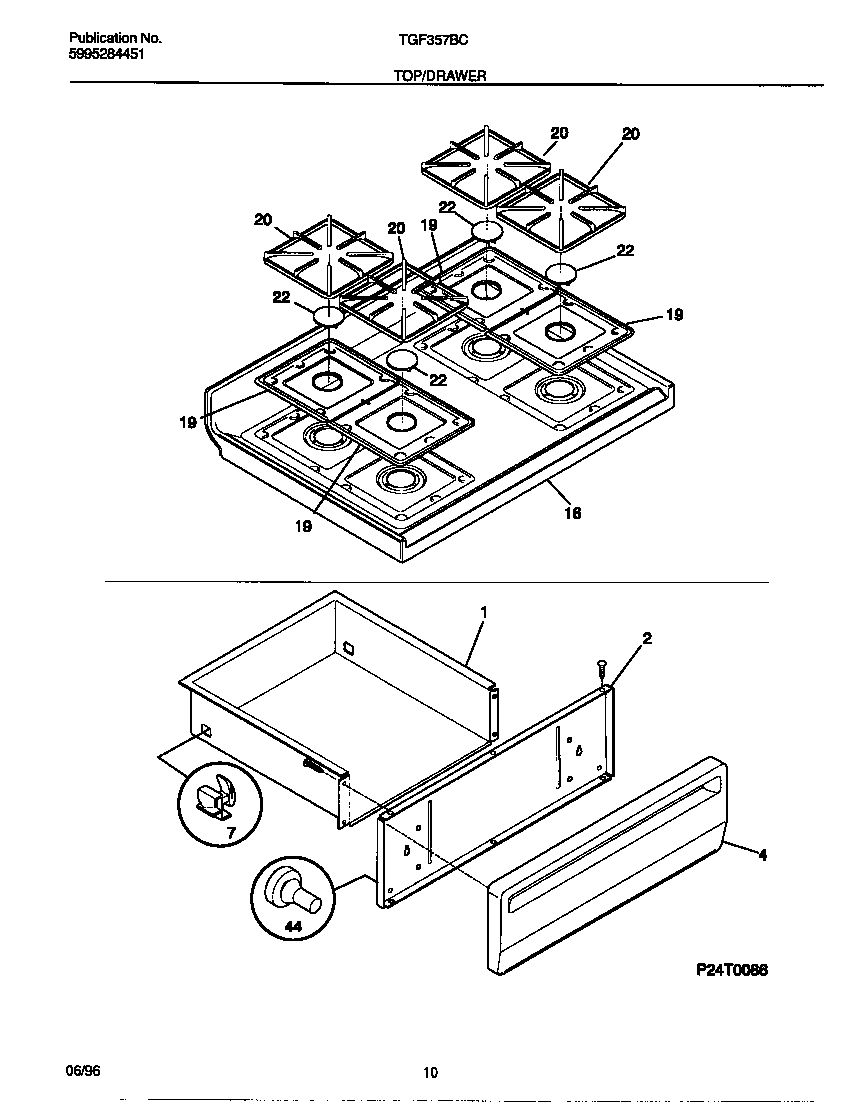

TGF357BCDD 05 – TOP/DRAWER

TGF357BCDD 05 – TOP/DRAWER

Written by

in

TGF357BCDD 05 – TOP/DRAWER

Products

PositionProduct
*27726RIVET-POP, WARING-PLATE
*27725Shield,deflector ,main top panel ,(2)
*27729131243700 Frigidaire Screw
*27728WCI 5303280311
*27730WCI 5303288574
*27727Screw,cup pt ,8-18 x 0.375 ,chrome
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084406
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4316021109 Frigidaire Oven Screw
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16WCI 5303307710
16BGUSSET-MTG (LH) (NON-ILLUSTRATED)
16AGUSSET-MTG (RH) (NON-ILLUSTRATED)
19WCI 316011415
19Pan-burner,large ,black
20WCI 316085201
22CAP-BURNER, MATTE BLACK, SMALL, (2)
22CAP-BURNER, MATTE BLACK, LARGE, (2)
443131903 Frigidaire Door/Drawer Bumper
