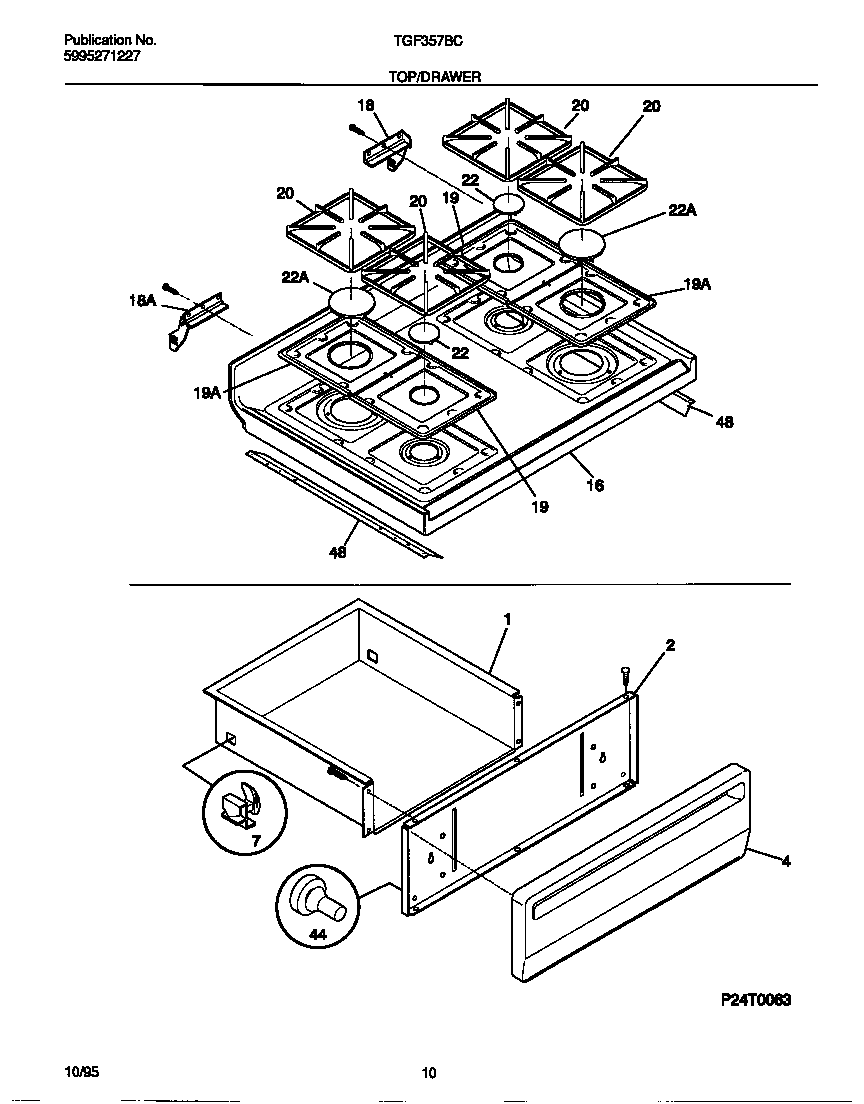

TGF357BCWA 05 – TOP/DRAWER

Products

Position	Product
*39685	RIVET-POP, WARING-PLATE
*39686	WCI 5303281584
*39688	WCI 5303288574
*39687	131243700 Frigidaire Screw
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316084405
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16B	GUSSET-MTG (LH) (NON-ILLUSTRATED)
16A	GUSSET-MTG (RH) (NON-ILLUSTRATED)
16	WCI 5303307709
18	HINGE-MAIN TOP (RH)
18	HINGE-MAIN TOP (LH)
19	WCI 316011415
19	Pan-burner,large ,black
20	WCI 316085201
22	CAP-BURNER, MATTE BLACK, LARGE, (2)
22	CAP-BURNER, MATTE BLACK, SMALL, (2)
44	3131903 Frigidaire Door/Drawer Bumper
48	WCI 316077501
