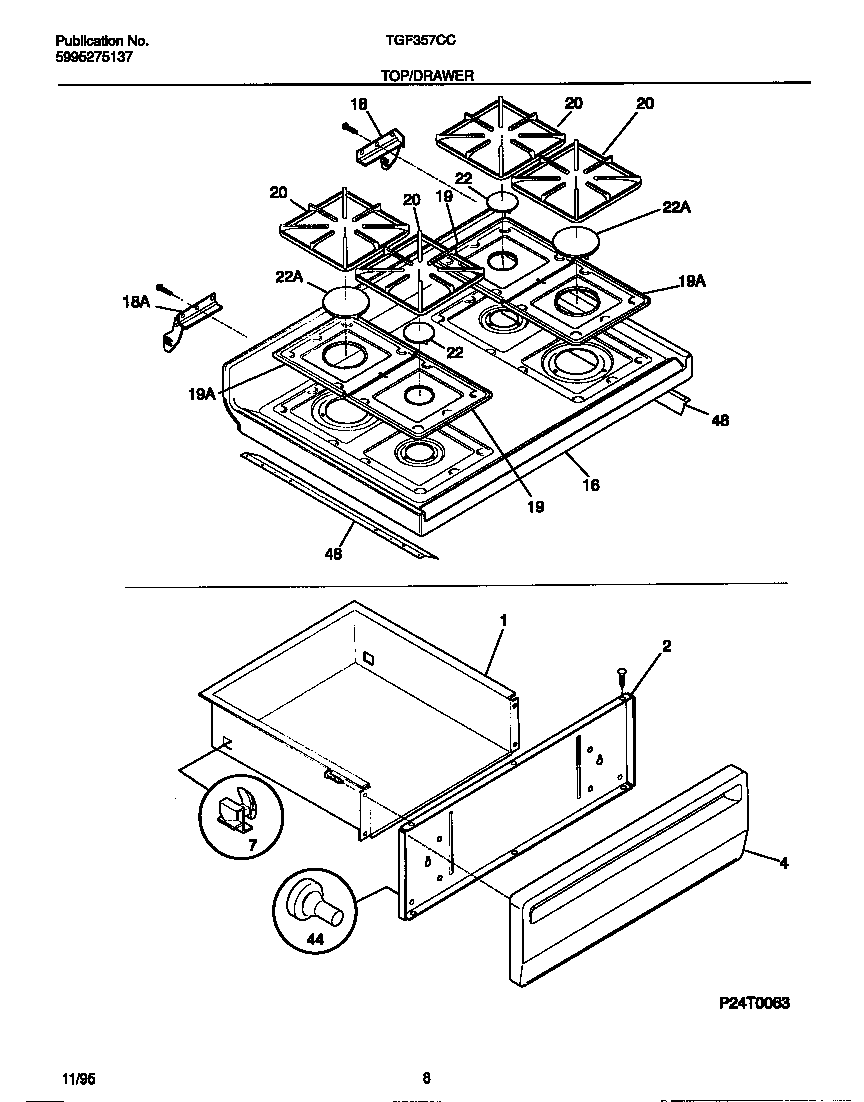

TGF357CCSB 05 – TOP/DRAWER

TGF357CCSB 05 – TOP/DRAWER

Written by

in

TGF357CCSB 05 – TOP/DRAWER

Products

PositionProduct
*18446RIVET-POP, WARING-PLATE
*18447WCI 5303281584
*18449WCI 5303288574
*18448131243700 Frigidaire Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084405
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16BGUSSET-MTG (LH) (NON-ILLUSTRATED)
16AGUSSET-MTG (RH) (NON-ILLUSTRATED)
16WCI 5303307709
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
19WCI 316011413
19Pan-burner,large ,gray
20WCI 316085202
22CAP-BURNER, MATTE GRAY, SMALL, (2)
22WCI 316011013
443131903 Frigidaire Door/Drawer Bumper
48WCI 316077501
