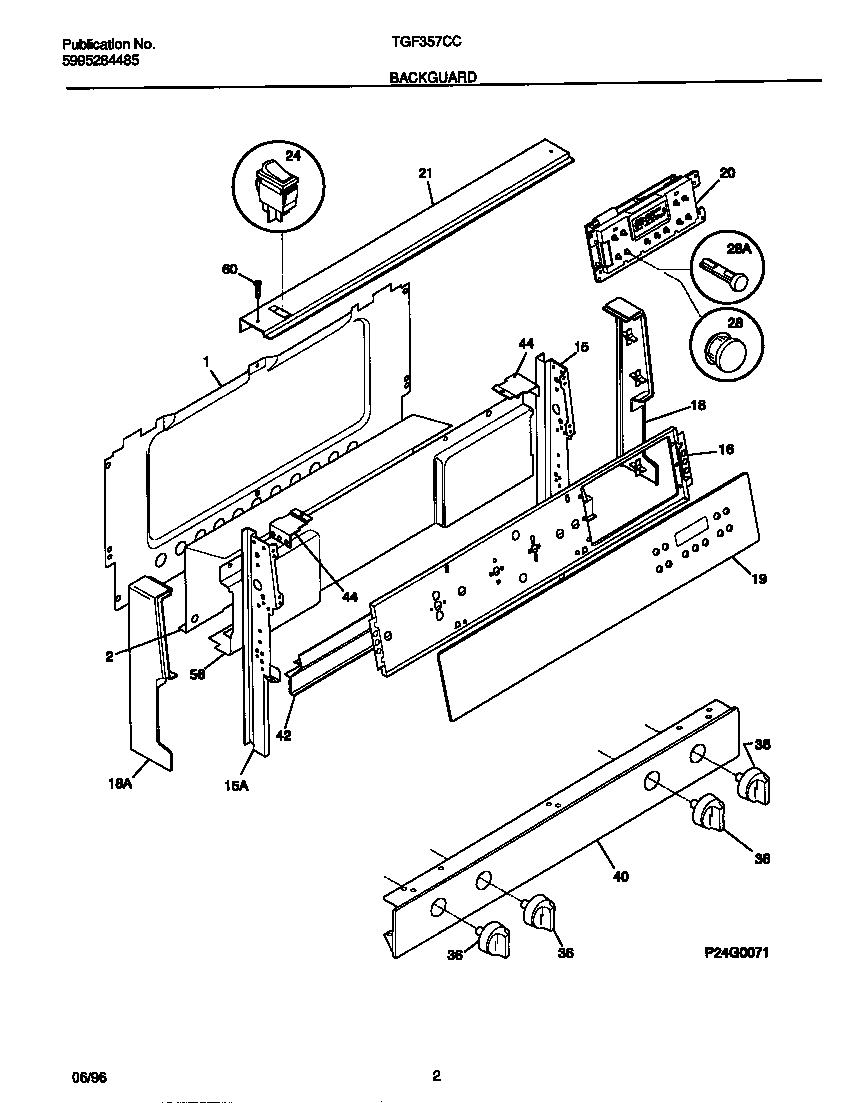

TGF357CCSC 02 – BACKGUARD

TGF357CCSC 02 – BACKGUARD

Written by

in

TGF357CCSC 02 – BACKGUARD

Products

PositionProduct
*81522WCI 5303290188
*81523WCI 316001446
*81521WCI 5303288574
*81520Screw,cup pt ,8-18 x 0.375 ,chrome
1SHIELD-BACKGUARD, REAR WALL
2WCI 316038801
15WCI 316023111
15WCI 316023110
16WCI 316083601
18WCI 316021805
18WCI 316021804
19WCI 316028350
19WCI 5303272836
20WCI 316080102
21WCI 316039202
24WCI 316060400
28PUSH BUTTON, CLOCK/TIMER/EOC, GRAY, (11)
28Shaft,push button ,black ,clock/timer/EOC
36WCI 316023021
40WCI 316086813
42WCI 5303272839
44WCI 5303272831
56WCI 316074902
60316021105 Frigidaire Oven Screw
