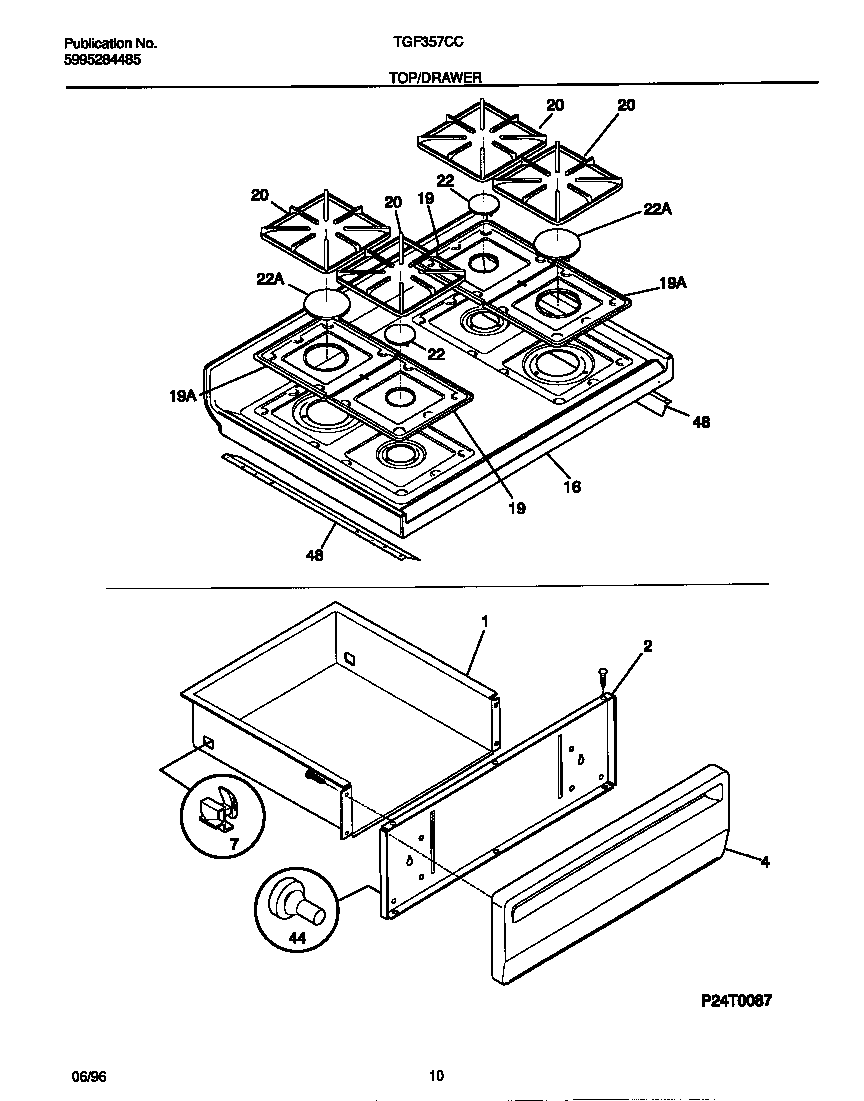

TGF357CCSD 05 – TOP/DRAWER

TGF357CCSD 05 – TOP/DRAWER

Written by

in

TGF357CCSD 05 – TOP/DRAWER

Products

PositionProduct
*81526RIVET-POP, WARING-PLATE
*81527Shield,deflector ,main top panel ,(2)
*81530131243700 Frigidaire Screw
*81528Screw,cup pt ,8-18 x 0.375 ,chrome
*81531WCI 5303288574
*81529WCI 5303280311
1DRAWER-UTILITY
2SHIELD-PNL
4316021109 Frigidaire Oven Screw
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316084405
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16WCI 5303307709
16BGUSSET-MTG (LH) (NON-ILLUSTRATED)
16AGUSSET-MTG (RH) (NON-ILLUSTRATED)
19Pan-burner,large ,gray
19WCI 316011413
20WCI 316085202
22CAP-BURNER, MATTE GRAY, SMALL, (2)
22WCI 316011013
443131903 Frigidaire Door/Drawer Bumper
48WCI 316077400
