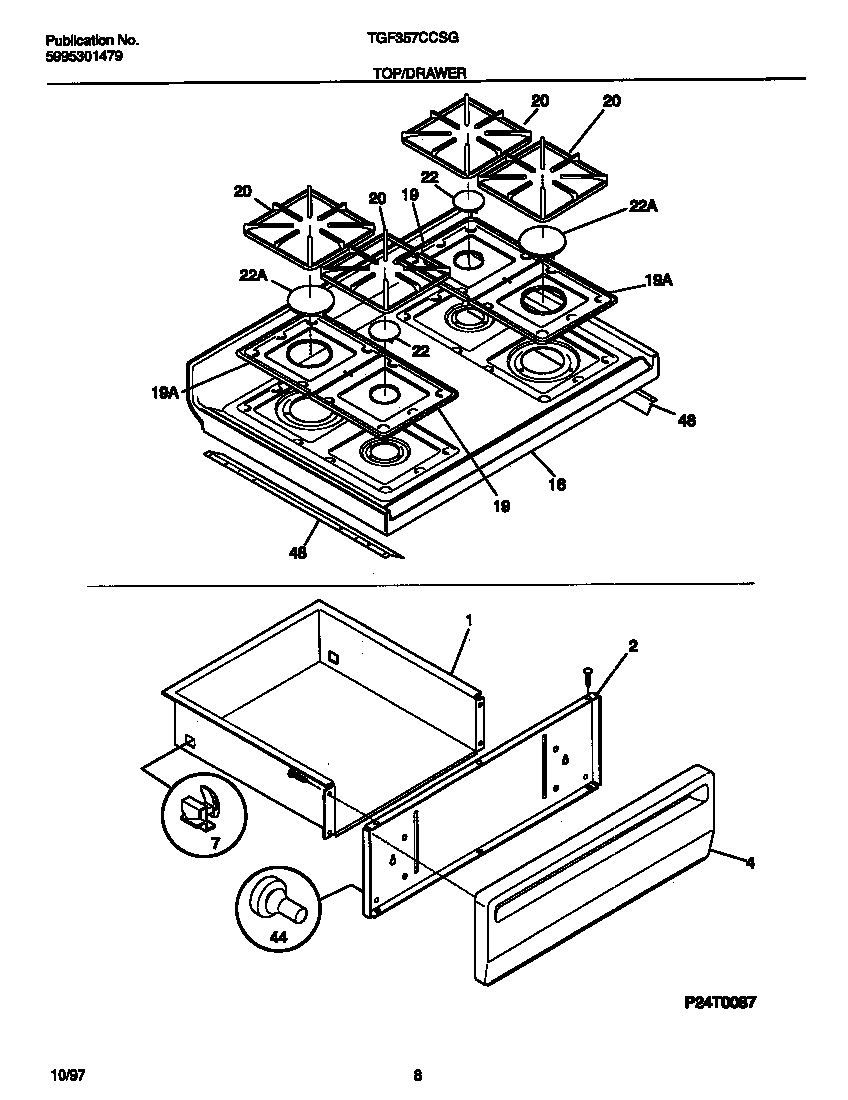

TGF357CCSG 05 – TOP/DRAWER

TGF357CCSG 05 – TOP/DRAWER

Written by

in

TGF357CCSG 05 – TOP/DRAWER

Products

PositionProduct
*07206RIVET-POP, WARING-PLATE
*07207316021105 Frigidaire Oven Screw
*07210WCI 316089600
*07212131243700 Frigidaire Screw
*07208Screw,cup pt ,8-18 x 0.375 ,chrome
*07209Clip,wiring harness ,green ,main top
*07211WCI 5303280311
1DRAWER-UTILITY
2SHIELD-PNL
4316021109 Frigidaire Oven Screw
4WCI 316084405
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16WCI 5303307709
19WCI 316011413
19Pan-burner,large ,gray
20WCI 316085205
22CAP-BURNER, GRAY, LARGE, (1)
22CAP-BURNER, DARK GRAY, (4)
443131903 Frigidaire Door/Drawer Bumper
48Shield,deflector ,main top panel ,(2)
