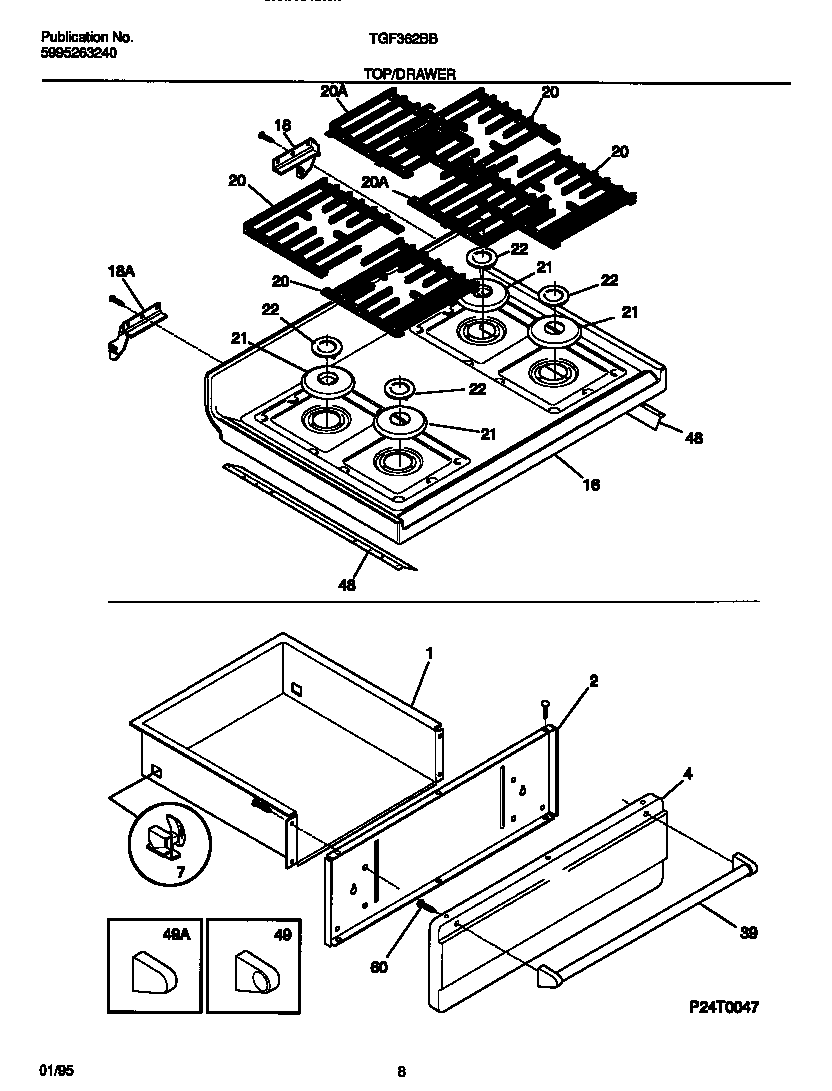

TGF362BBBA 05 – TOP/DRAWER

Products

Position	Product
*96127	WCI 3018702
*96128	WCI 5303281584
*96129	WCI 5303288574
1	DRAWER-UTILITY
2	WCI 316063503
4	WCI 316056209
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16	GUSSET-MTG (RH) (NON-ILLUSTRATED)
16	WCI 5303291521
16	GUSSET-MTG (LH) (NON-ILLUSTRATED)
18	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
18	131243700 Frigidaire Screw
20	WCI 316070000
20	WCI 316069900
21	TRIM RING-BURNER, BLACK, SMALL, (4)
22	CAP-BURNER, DARK GRAY, (4)
39	WCI 316008306
48	WCI 316075001
49	WCI 5303307193
49	WCI 5303307192
60	WCI 5303280308
