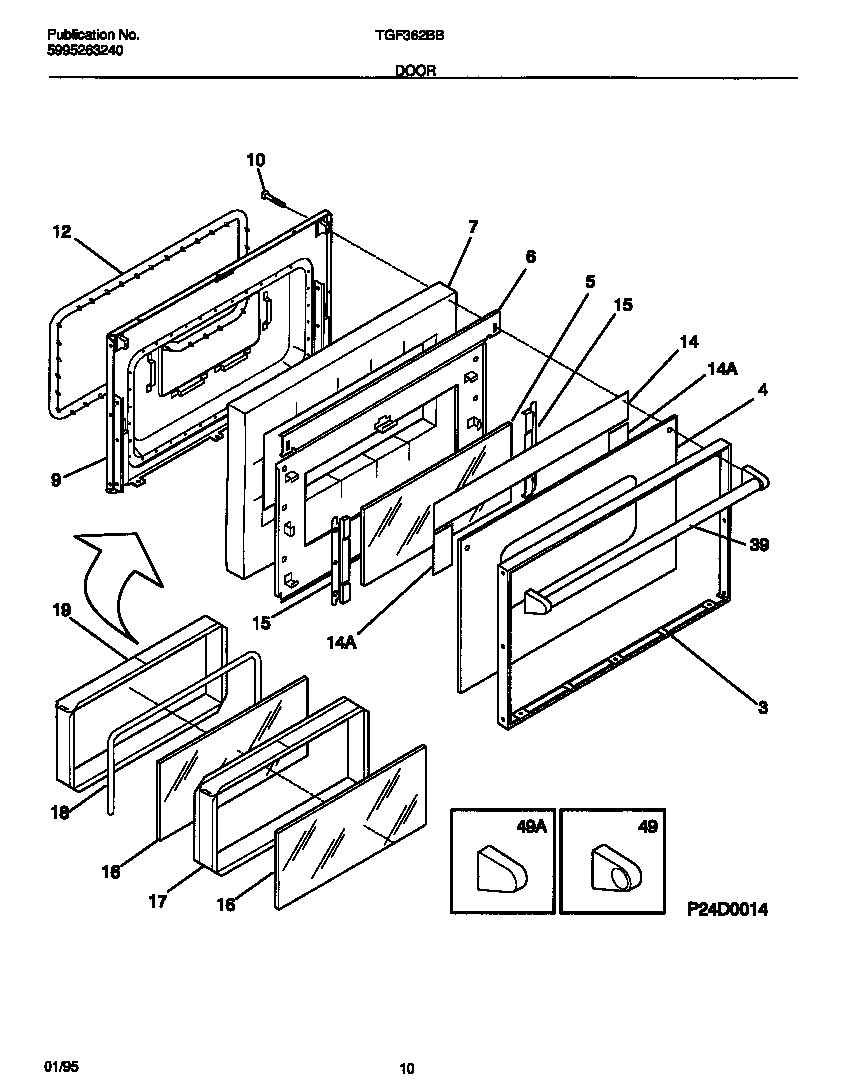

TGF362BBBA 06 – DOOR

TGF362BBBA 06 – DOOR

Written by

in

TGF362BBBA 06 – DOOR

Products

PositionProduct
*96132RIVET-POP, WARING-PLATE
*96130WCI 5303280308
*96134WCI 5303269859
*96133SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*96131WCI 316065300
3WCI 316067802
4GLASS-OVEN DOOR, BLACK, OUTER
5GLASS-OVEN DOOR, INNER
6SHIELD-INSULATION
7INSULATION-OVEN DOOR
9WCI 316066603
10SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375
125303131601 Frigidaire Oven Seal
145303208655 Frigidaire Reflector Assembly
14REFLECTOR, ALUMINUM FOIL
15BRACKET-GLASS MTG
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18SEAL-ROPE, 0.25 DIA
18131243700 Frigidaire Screw
19WCI 316067600
39WCI 316008306
49WCI 5303307192
49WCI 5303307193
