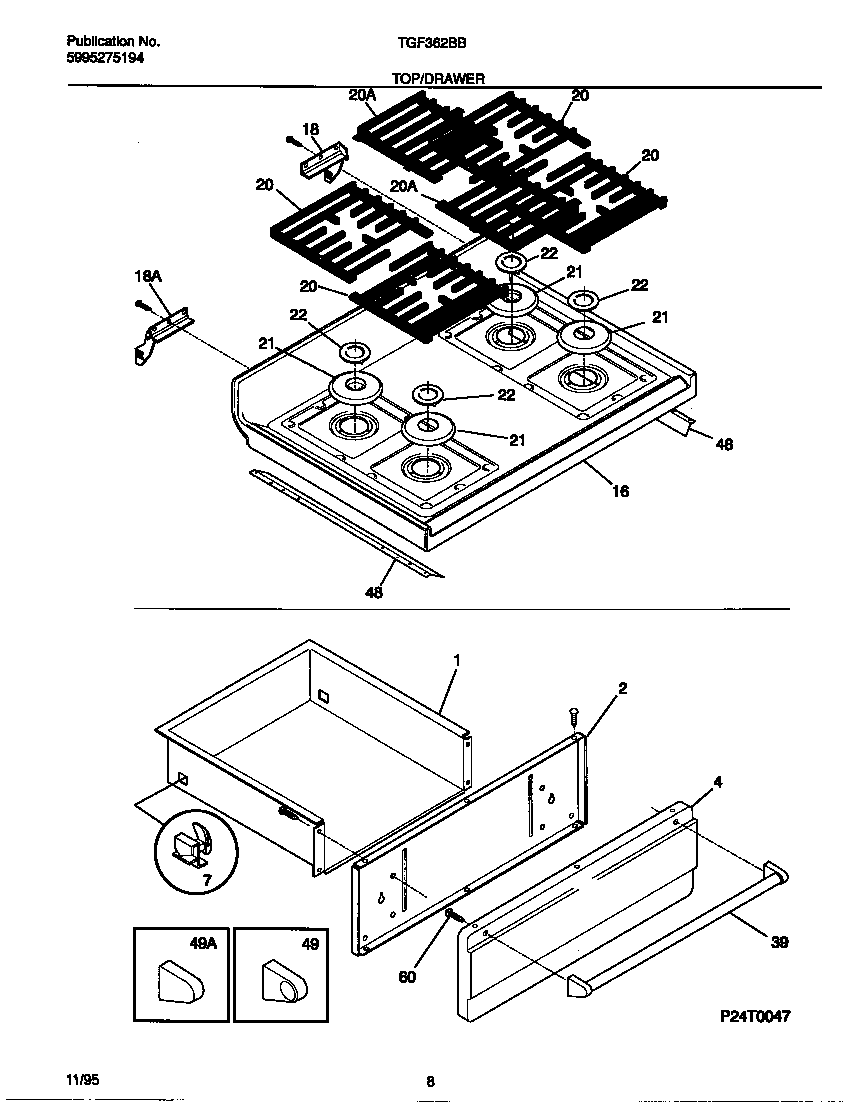

TGF362BBBB 05 – TOP/DRAWER

Products

Position	Product
*74089	RIVET-POP, WARING-PLATE
*74091	131243700 Frigidaire Screw
*74087	3131903 Frigidaire Door/Drawer Bumper
*74092	WCI 5303288574
*74088	WCI 3018702
*74090	WCI 5303281584
1	DRAWER-UTILITY
2	WCI 316063503
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	WCI 316056209
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16	GUSSET-MTG (LH) (NON-ILLUSTRATED)
16	GUSSET-MTG (RH) (NON-ILLUSTRATED)
16	WCI 5303291521
18	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
20	WCI 316069900
20	WCI 316070000
21	TRIM RING-BURNER, BLACK, SMALL, (4)
22	CAP-BURNER, DARK GRAY, (4)
39	WCI 316008306
48	WCI 316075001
49	WCI 5303307193
49	WCI 5303307192
60	WCI 5303280308
