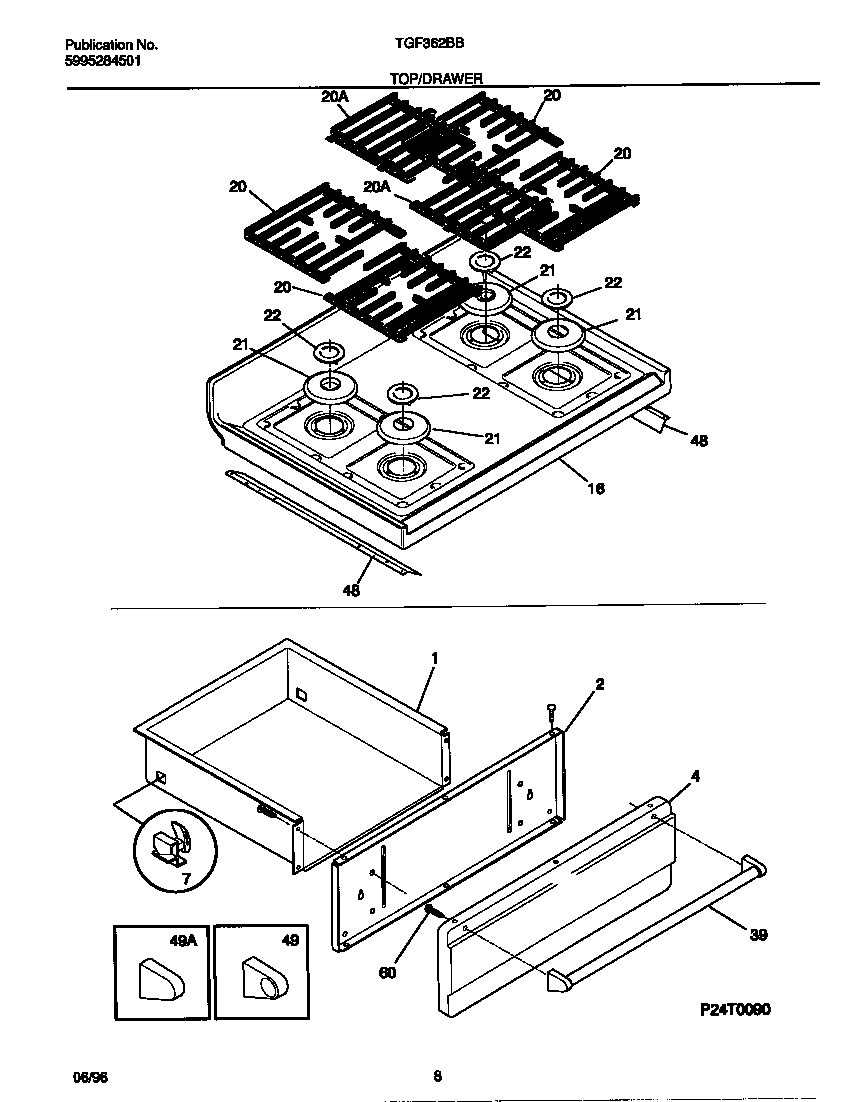

TGF362BBBC 05 – TOP/DRAWERadmin2025-04-26T09:00:23+00:00TGF362BBBC 05 – TOP/DRAWER
Products
| Position | Product |
|---|
| *02768 | RIVET-POP, WARING-PLATE |
| *02767 | WCI 3018702 |
| *02771 | 131243700 Frigidaire Screw |
| *02766 | 3131903 Frigidaire Door/Drawer Bumper |
| *02770 | WCI 5303280311 |
| *02772 | WCI 5303288574 |
| *02769 | Screw,cup pt ,8-18 x 0.375 ,chrome |
| 1 | DRAWER-UTILITY |
| 2 | WCI 316063503 |
| 4A | WCI 316056209 |
| 4B | SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED) |
| 7 | 3051163 Frigidaire Oven Range Rear Broiler Drawer Glide |
| 16A | WCI 5303291521 |
| 16B | GUSSET-MTG (RH) (NON-ILLUSTRATED) |
| 16C | GUSSET-MTG (LH) (NON-ILLUSTRATED) |
| 20 | WCI 316069900 |
| 20 | WCI 316070000 |
| 21 | TRIM RING-BURNER, BLACK, SMALL, (4) |
| 22 | CAP-BURNER, DARK GRAY, (4) |
| 39 | WCI 316008306 |
| 48 | Shield,deflector ,main top panel ,(2) |
| 49 | WCI 5303307193 |
| 49 | WCI 5303307192 |
| 60 | 316089500 Frigidaire Oven Screw |
