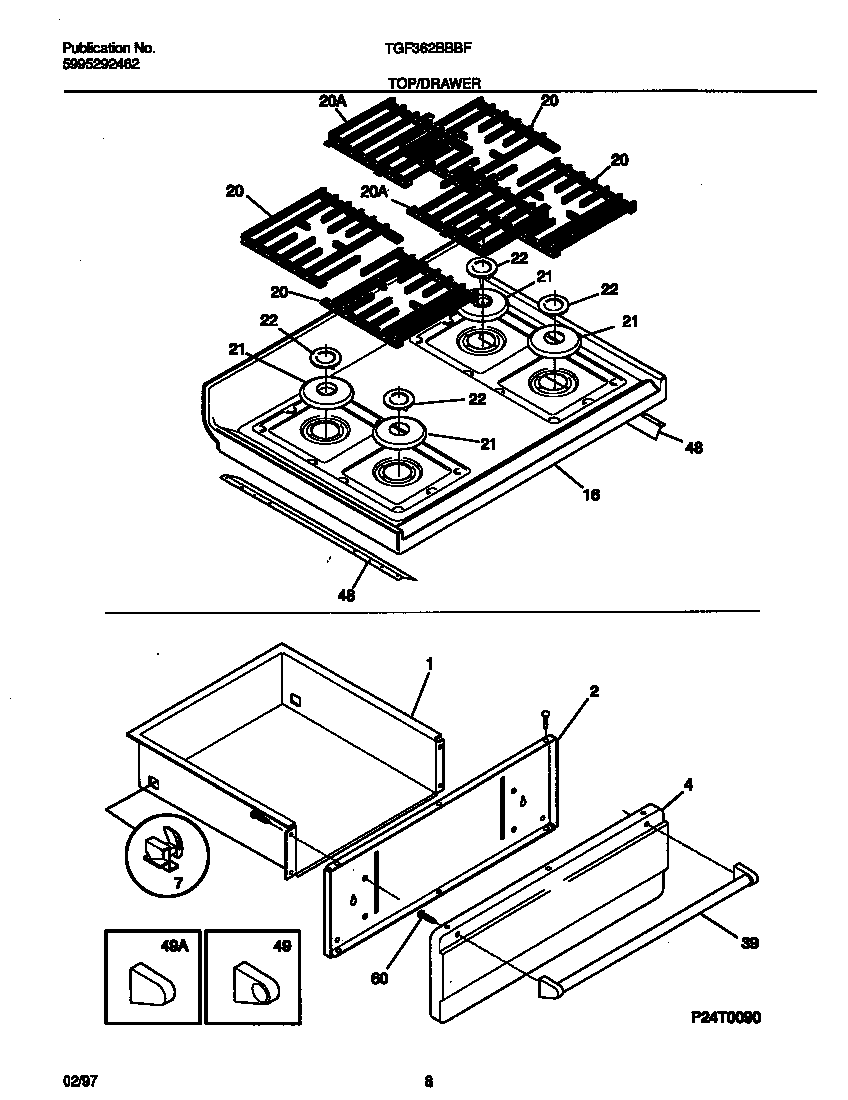

TGF362BBBF 05 – TOP/DRAWER

Products

Position	Product
*69647	RIVET-POP, WARING-PLATE
*69650	131243700 Frigidaire Screw
*69645	3131903 Frigidaire Door/Drawer Bumper
*69649	WCI 5303280311
*69646	WCI 3018702
*69651	WCI 5303288574
*69648	Screw,cup pt ,8-18 x 0.375 ,chrome
1	DRAWER-UTILITY
2	WCI 316063503
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	WCI 316056209
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16	GUSSET-MTG (RH) (NON-ILLUSTRATED)
16	GUSSET-MTG (LH) (NON-ILLUSTRATED)
16	WCI 5303291521
20	WCI 316070000
20	WCI 316069900
21	TRIM RING-BURNER, BLACK, SMALL, (4)
22	CAP-BURNER, DARK GRAY, (4)
39	WCI 316008306
49	WCI 5303307193
49	WCI 5303307192
60	SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375
