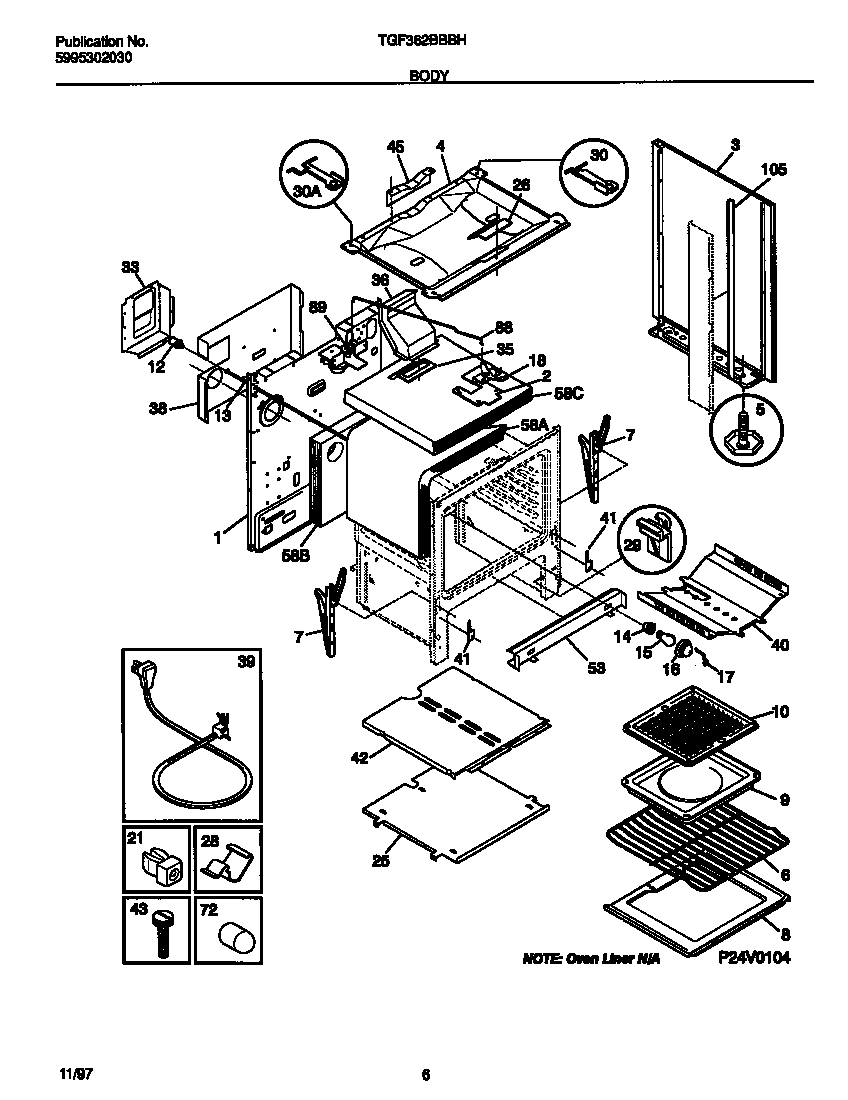

TGF362BBBH 04 – BODY

TGF362BBBH 04 – BODY

Written by

in

TGF362BBBH 04 – BODY

Products

PositionProduct
*96286WCI 316001629
*96284Screw,cup pt ,8-18 x 0.375 ,chrome
*96285Clip,wiring harness ,green ,main top
*962833131903 Frigidaire Door/Drawer Bumper
1WCI 316029412
2SHIELD-OVN TOP
3WCI 316081026
3WCI 316088100
3WCI 08067992
3WCI 316081027
4WCI 316011912
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5316116000 Frigidaire Screw
5WCI 3934058
5SCREW-LEVELING
65304531722 Frigidaire Rack
73203010 Frigidaire Clip
7WCI 316007002
8BTTM-OVEN
8316064600 Frigidaire Oven Support
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 5303288580
26WCI 08067757
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30WCI 316059201
30WCI 316059200
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 5303272844
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
38WCI 316051700
39WCI 08067961
395304515659 Frigidaire Oven Power Cord
40SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
40WCI 3200836
41WCI 3131570
42WCI 5303288578
43316282700 Frigidaire Oven Screw
45WCI 08068018
493205821 Frigidaire Clip
5308067973 Frigidaire 0 Insulation
53WCI 5303288579
55WCI 316052601
58INSULATION, OVEN TOP
58WCI 316047705
58WCI 316054200
72COVER-LIGHT/SWITCH ROD
88WCI 316026400
89WCI 316028101
