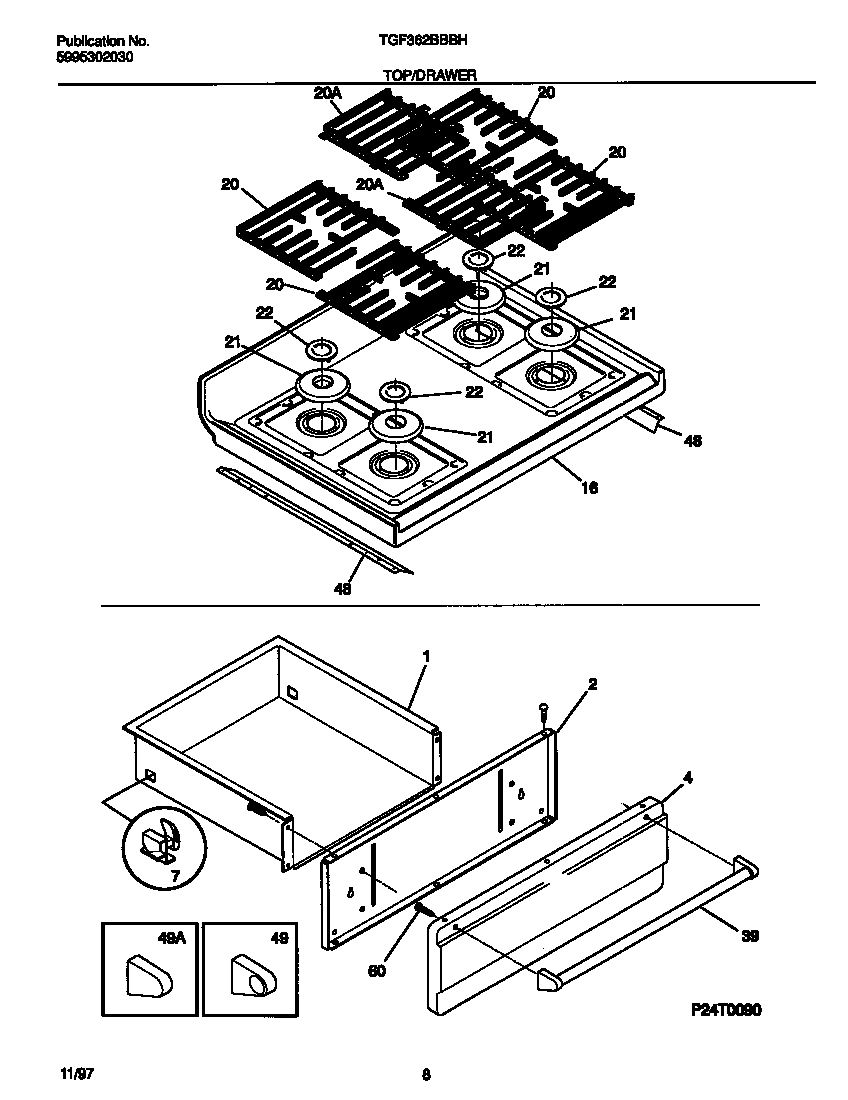

TGF362BBBH 05 – TOP/DRAWERadmin2025-04-26T09:00:34+00:00TGF362BBBH 05 – TOP/DRAWER
Products
| Position | Product |
|---|
| *96291 | RIVET-POP, WARING-PLATE |
| *96296 | 131243700 Frigidaire Screw |
| *96295 | WCI 5303280311 |
| *96290 | WCI 3018702 |
| *96294 | Clip,wiring harness ,green ,main top |
| *96288 | WCI 5303288574 |
| *96293 | Screw,cup pt ,8-18 x 0.375 ,chrome |
| *96289 | Shield,deflector ,main top panel ,(2) |
| *96292 | 316021105 Frigidaire Oven Screw |
| *96287 | 3131903 Frigidaire Door/Drawer Bumper |
| 1 | DRAWER-UTILITY |
| 2 | WCI 316063503 |
| 4 | WCI 316056209 |
| 7 | 3051163 Frigidaire Oven Range Rear Broiler Drawer Glide |
| 16 | GUSSET-MTG (LH) (NON-ILLUSTRATED) |
| 16 | GUSSET-MTG (RH) (NON-ILLUSTRATED) |
| 16 | WCI 5303291521 |
| 20 | WCI 316069901 |
| 20 | WCI 316070001 |
| 21 | TRIM RING-BURNER, BLACK, SMALL, (4) |
| 22 | CAP-BURNER, DARK GRAY, (4) |
| 39 | WCI 316008306 |
| 49 | WCI 5303307193 |
| 49 | WCI 5303307192 |
| 60 | SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375 |
