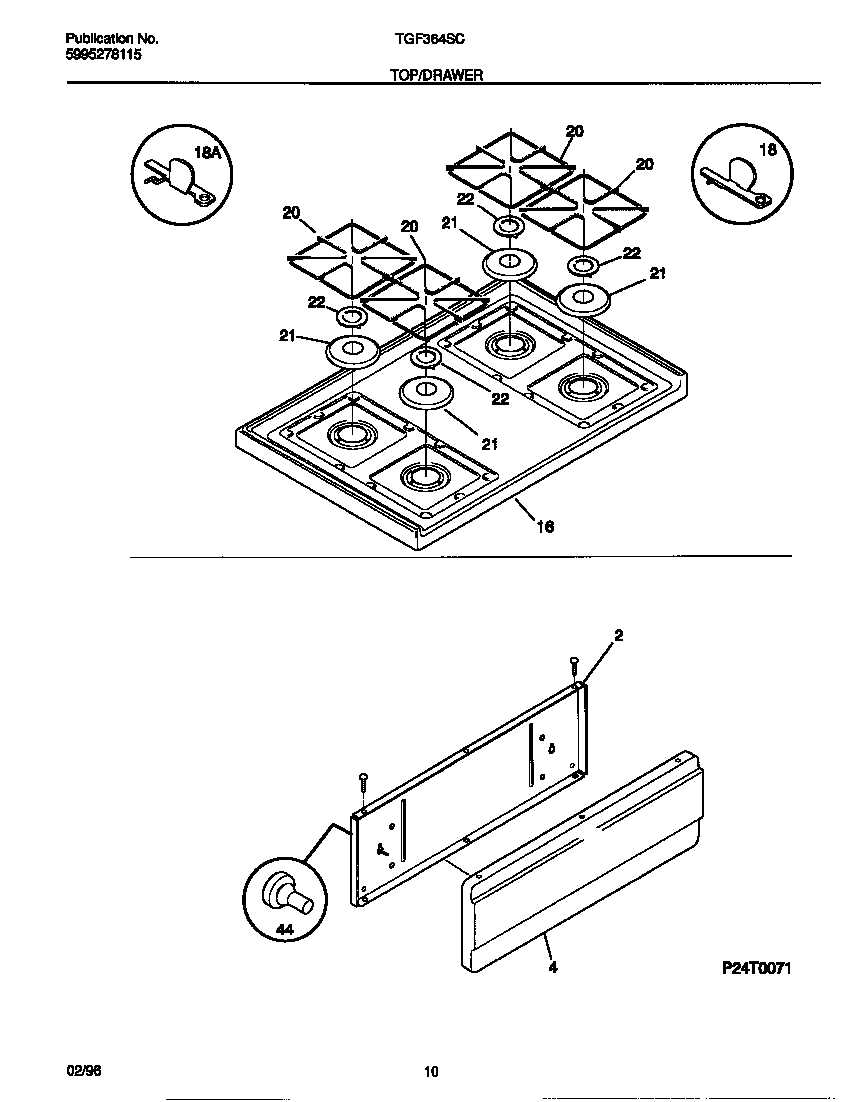

TGF364SCWA 05 – TOP/DRAWERadmin2025-04-26T08:59:56+00:00TGF364SCWA 05 – TOP/DRAWER
Products
| Position | Product |
|---|
| *90531 | WCI 3018702 |
| *90532 | RIVET-POP, WARING-PLATE |
| *90534 | WCI 5303281584 |
| *90533 | Screw,cup pt ,8-18 x 0.375 ,chrome |
| *90535 | 131243700 Frigidaire Screw |
| 2 | SHIELD-PNL |
| 4 | SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED) |
| 4 | PNL - DRAWER (WHITE) |
| 16 | WCI 316010408 |
| 16B | GUSSET-MTG (LH) (NON-ILLUSTRATED) |
| 16A | GUSSET-MTG (RH) (NON-ILLUSTRATED) |
| 18 | BRACKET-HINGE,MAIN TOP LH |
| 18 | BRACKET-HINGE,MAIN TOP RH |
| 20 | WCI 316088900 |
| 21 | TRIM RING-BURNER, BLACK, SMALL, (4) |
| 22 | 316010901 Frigidaire Burner Cap P1 |
| 44 | 3131903 Frigidaire Door/Drawer Bumper |
