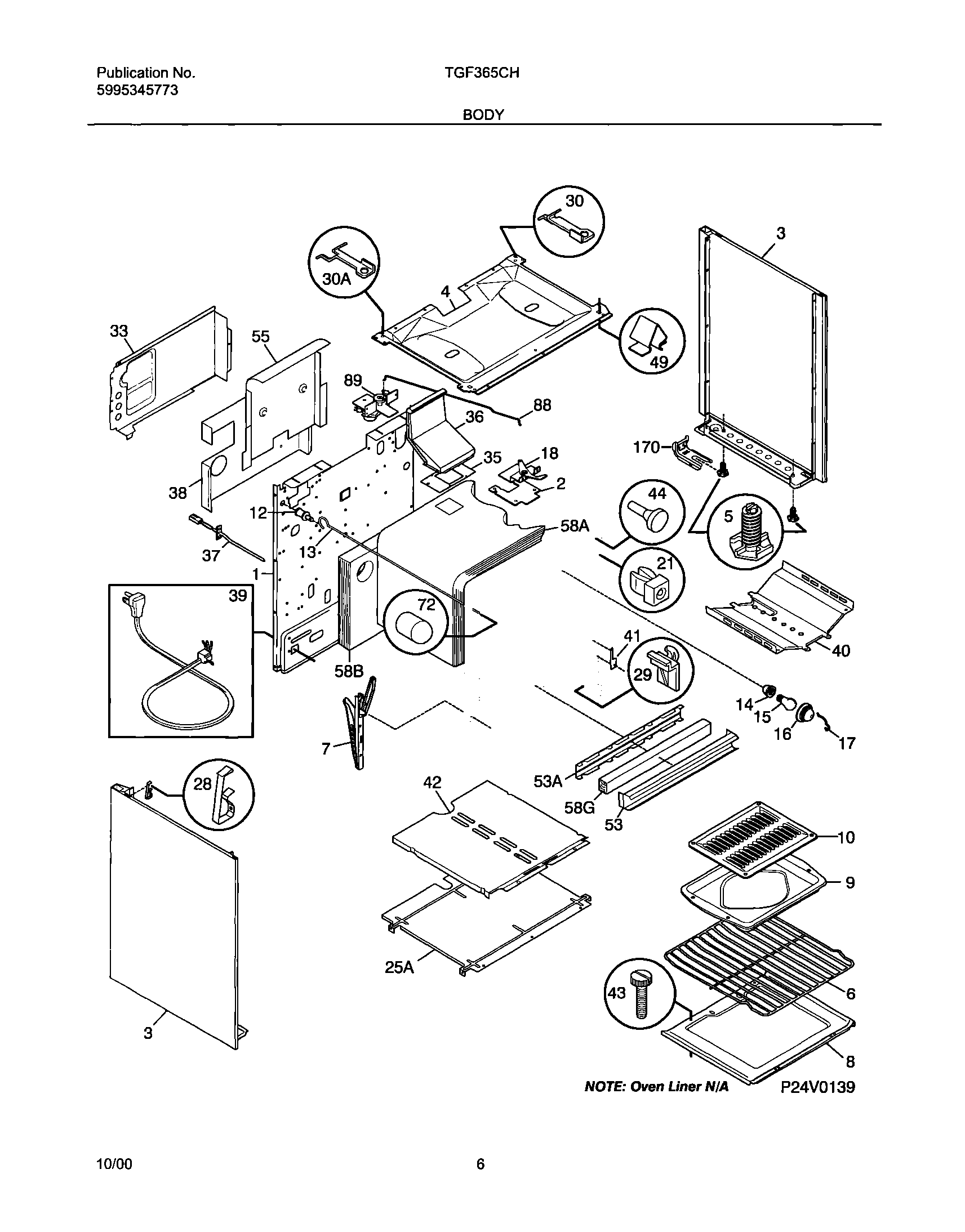

TGF365CHTF 07 – BODY

TGF365CHTF 07 – BODY

Written by

in

TGF365CHTF 07 – BODY

Products

PositionProduct
NISCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NIWCI 316001629
NI316064600 Frigidaire Oven Support
NI316021105 Frigidaire Oven Screw
1WCI 316029416
2SHIELD-OVN TOP
3WCI 316081037
3WCI 316081036
4WCI 316011917
5WCI 316129200
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 5303288580
26WCI 08067757
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30WCI 316059200
30AWCI 316059201
33WCI 5303288495
35316542102 Frigidaire Flue Gasket
36WCI 316133002
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
38WCI 316051700
395304515659 Frigidaire Oven Power Cord
40WCI 3200836
41WCI 3131570
42WCI 5303288578
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
493205821 Frigidaire Clip
53AWCI 08067992
53WCI 5303288579
55WCI 316107800
58G08067973 Frigidaire 0 Insulation
58AINSULATION, OVEN WRAPPER
58BWCI 316054200
72COVER-LIGHT/SWITCH ROD
88WCI 316026400
89WCI 316028101
170316112500 Frigidaire Oven Template
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170316116000 Frigidaire Screw
