TGF366CFTE 05 – TOP/DRAWER

TGF366CFTE 05 – TOP/DRAWER

Written by

in

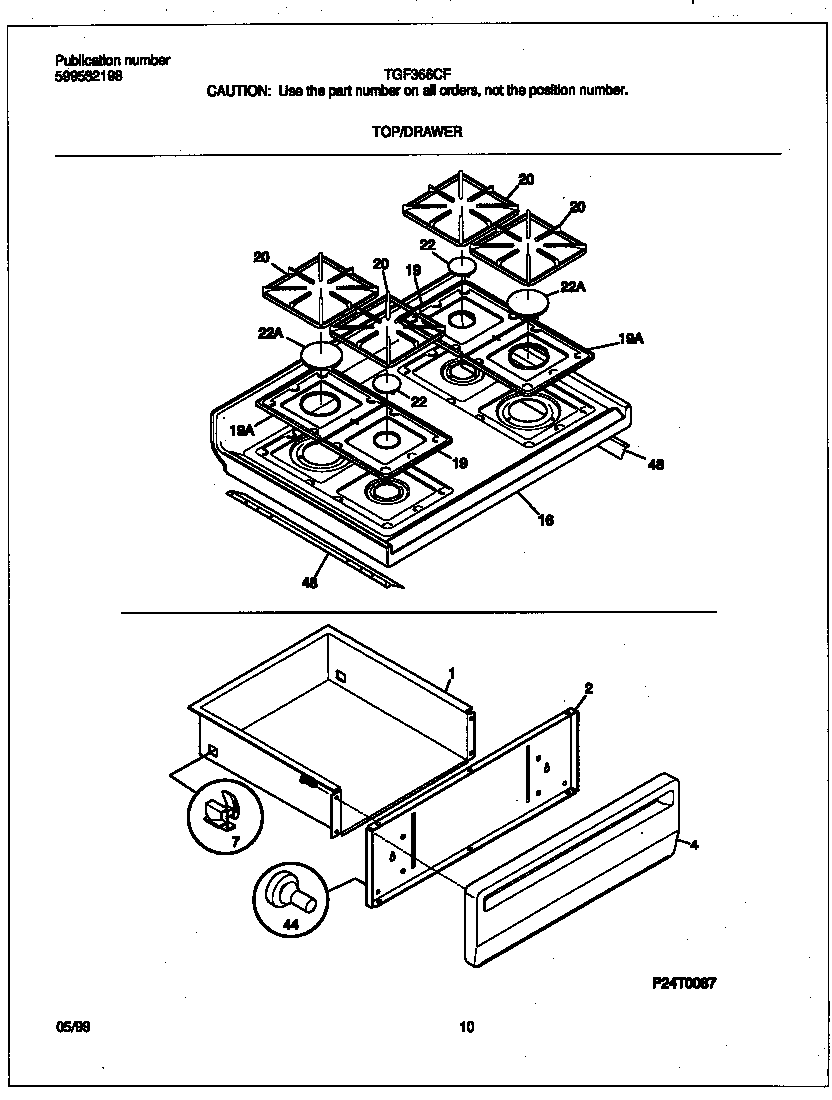

TGF366CFTE 05 – TOP/DRAWER

Products

PositionProduct
*37109316021105 Frigidaire Oven Screw
*37108SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
*37107WCI 5303280311
*37102Screw,cup pt ,8-18 x 0.375 ,chrome
*37103316021109 Frigidaire Oven Screw
*37106WCI 316089600
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084405
4WCI 316084406
4WCI 316084407
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
10WCI 5303280308
16WCI 5303307708
16WCI 5303307710
16WCI 5303307709
19WCI 316011415
19Pan-burner,large ,gray
19WCI 316011413
19Pan-burner,large ,black
19Pan-burner,large ,almond
19WCI 316011414
20WCI 316085201
20WCI 316085205
22CAP-BURNER,SMALL ,GLOSS GRAY
22CAP-BURNER,BLACK ,LARGE
22CAP-BURNER,LARGE ,GLOSS GRAY
22CAP-BURNER,BLACK ,SMALL
443131903 Frigidaire Door/Drawer Bumper
48Shield,deflector ,main top panel ,(2)
