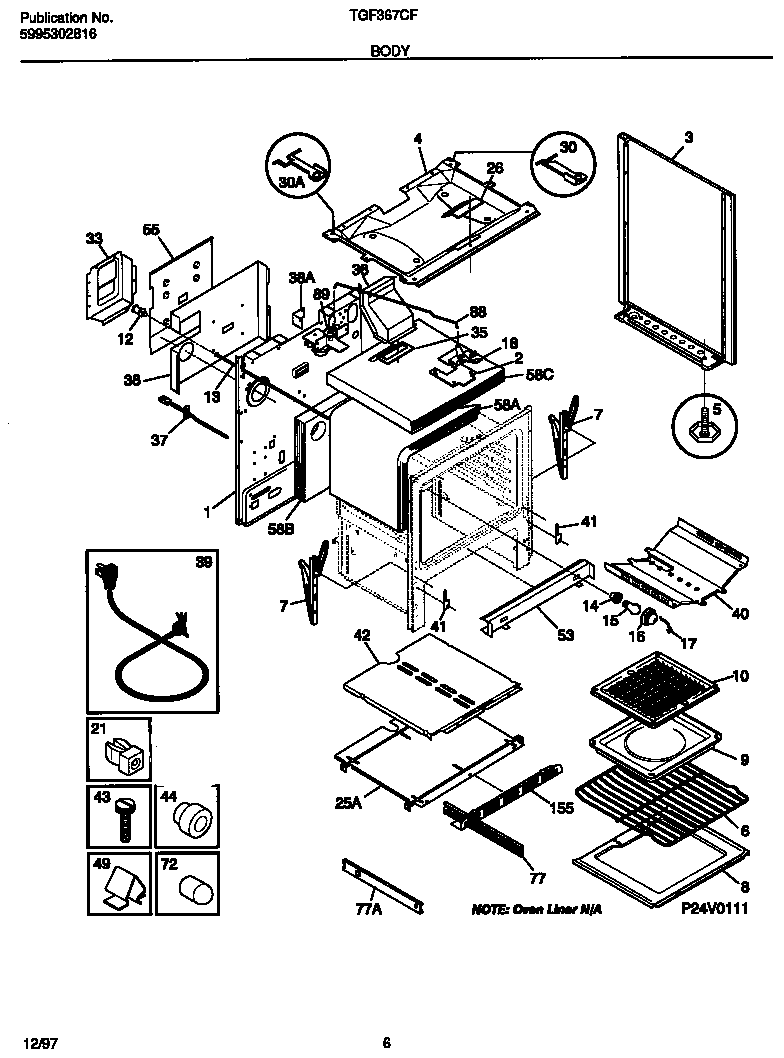

TGF367CFTA 04 – BODY

TGF367CFTA 04 – BODY

Written by

in

TGF367CFTA 04 – BODY

Products

PositionProduct
*15282Screw,cup pt ,8-18 x 0.375 ,chrome
*15283Clip,wiring harness ,green ,main top
1WCI 316029412
2SHIELD-OVN TOP
3WCI 08067992
3WCI 316088100
3PANEL-BODYSIDE,ALMOND ,LH
3WCI 316081030
4WCI 316011912
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5C316116000 Frigidaire Screw
5BWCI 3934058
5ASCREW-LEVELING
6316067902 Frigidaire Oven Rack
7B3203010 Frigidaire Clip
7AWCI 316007002
8ABTTM-OVEN
8B316064600 Frigidaire Oven Support
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25Shield,warmer drawer ,upper
26WCI 08067757
30WCI 316059200
30WCI 316059201
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 5303272844
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
38WCI 316051700
38WCI 316097100
39BWCI 08067961
39A5304534000 Frigidaire Cord
40BSCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
40AWCI 3200836
41WCI 3131570
42WCI 5303288578
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
493205821 Frigidaire Clip
53B08067973 Frigidaire 0 Insulation
53AWCI 5303288579
55WCI 316052601
58WCI 316047705
58WCI 316054200
58INSULATION, OVEN TOP
72COVER-LIGHT/SWITCH ROD
77RAIL-DRAWER,LH,OUTER
77Rail,drawer ,RH outer
88WCI 316026400
89WCI 316028103
155WCI 316095201
