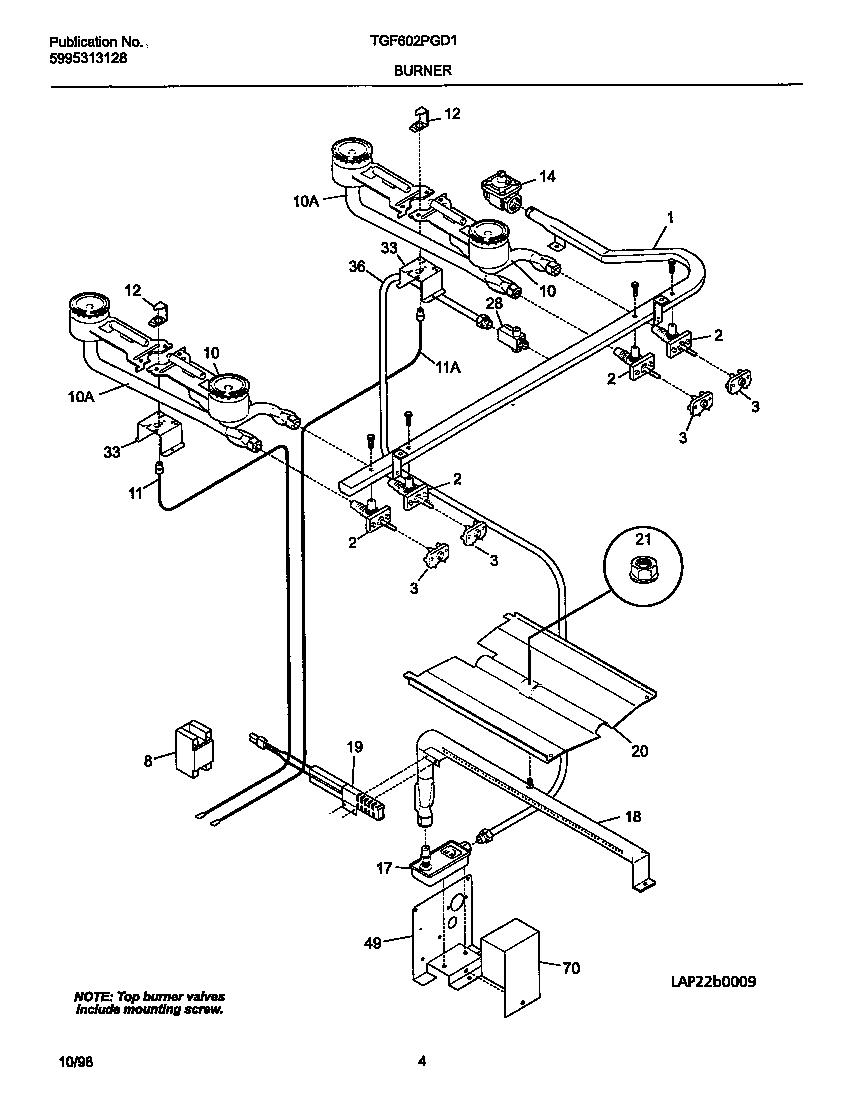

TGF602PGD1 03 – BURNER

Products

Position	Product
*97881	WCI 5303323141
*97887	216858001 Frigidaire Refrigerator Screw
*97884	SCREW, 8 X 5/8, SPARK MODULE
*97885	WCI 08008009
*97883	NUT, SUPPORT OVN VLV (NOT ILLUSTRATED)
*97886	WCI 08008051
*97882	WCI 5303311549
1	WCI 318078003
2	WCI 318087100
3	SWITCH-IGNITER, (4)
8	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
10	BURNER-TOP, FRONT
10	Burner,top ,rear
11	WCI 318083200
11	IGNITOR-TOP BURNER, BASE
12	RETAINER-IGNITER
14	5308007974 Frigidaire Pressure Regulator
17	WCI 318087200
18	WCI 5303202752
19	5303935066 Frigidaire Oven Flat Igniter 17" Leads
20	WCI 3203676
21	5303013272 Frigidaire Oven Nut
28	WCI 5303131099
33	WCI 5303210471
36	WCI 5303323849
49	SUPPORT-OVEN SAFETY VALVE
70	COVER – OVEN SAFETY VALVE
