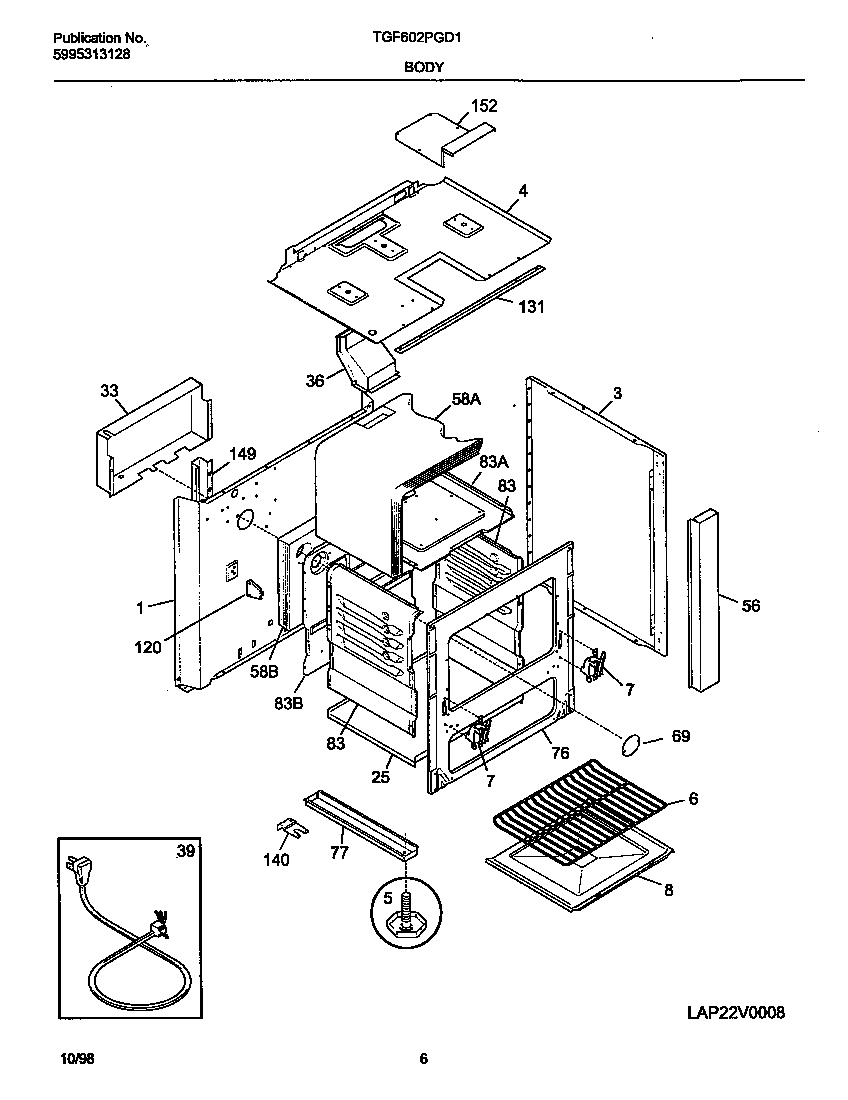

TGF602PGD1 04 – BODY

TGF602PGD1 04 – BODY

Written by

in

TGF602PGD1 04 – BODY

Products

PositionProduct
*97902WCI 316042301
*97899RAIL-BASE, LH
*97898Rail,base ,RH
*97897WCI 5303299689
*97896SUPPORT-OVEN BOTTOM
*97906WCI 5303323146
*97894SPRING-OVEN DOOR (2)
*97892SHIELD-BURNER BOX LH
*97903WCI 08008037
*97891SHIELD-BURNER BOX RH
*97900WCI 5303324119
*979055304464772 Frigidaire Refrigerator Wire Tie
*97904SCREW, 10 X 3/8
*979015303284616 Frigidaire Range Bulb Clip Thermostat
*978955300809968 Frigidaire Dishwasher P-1 Washer
*97893GROMMET-MAIN TOP (NOT ILLUSTRATED)
*97890ANTI-TIP KIT, (NON-ILLUSTRATED)
*97888GROMMET
*97889CLIP,BODYSIDE
1WCI 318076300
3PANEL BODYSIDE-ALMD
4Burner Box,top
5318175503 Frigidaire Screw with Bolt
6WCI 5303311539
7WCI 3205894
7318348801 Frigidaire Oven Left Side Door Hinge
8SHIELD, BOTTOM
25WCI 318121700
33COVER WIRE BACK
36WCI 318089700
39WCI 5303308453
56PANEL FILLER – ALMOND
58WCI 3017171
58WCI 3017172
69WCI 318036400
76WCI 318133900
77SUPPORT-RAIL (NOT ILLUSTRATED)
83WCI 318134800
83WCI 318134200
83WCI 318134300
83WCI 318134600
120SUPPORT-REAR OVN (2)
131Support,control panel
140BRACKET-INSTALLATION (2)
149CHANNEL – MAIN WIRE
152WCI 318135703
