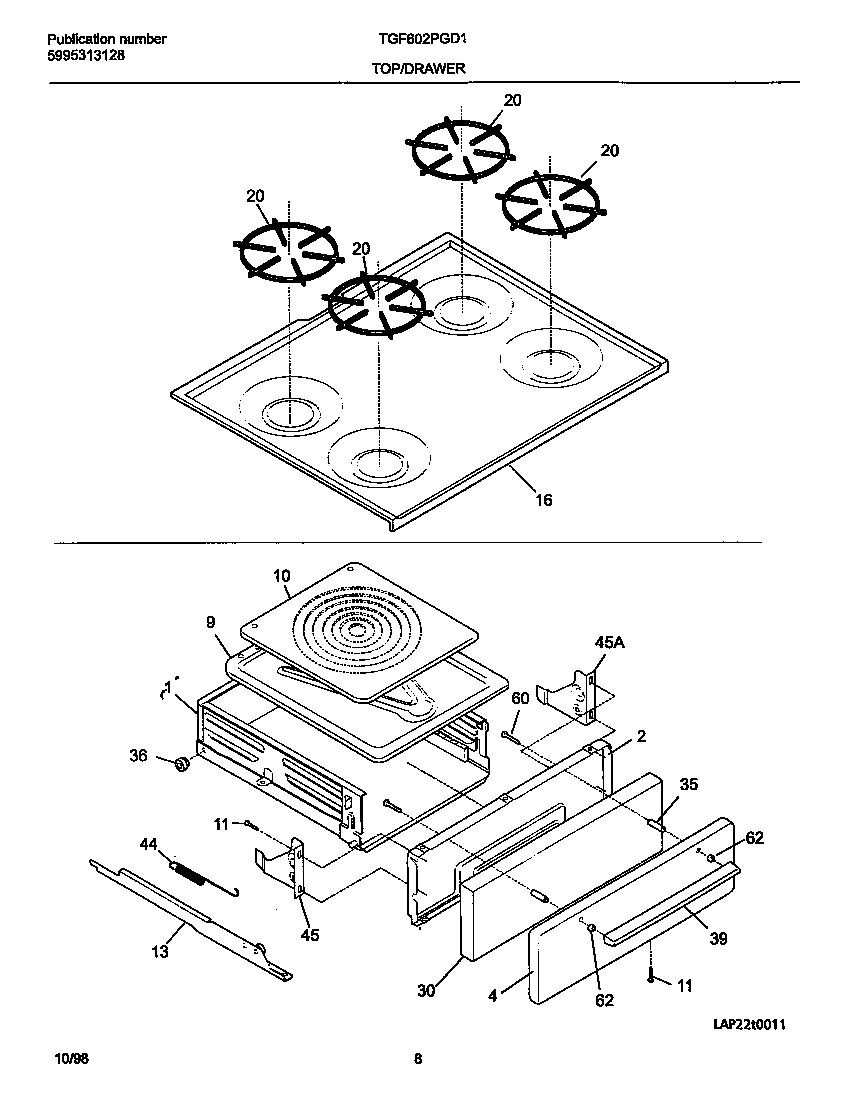

TGF602PGD1 05 – TOP/DRAWER

TGF602PGD1 05 – TOP/DRAWER

Written by

in

TGF602PGD1 05 – TOP/DRAWER

Products

PositionProduct
*97907CHANNEL-DRAWER
15304504568 Frigidaire Drawer Assembly
2Liner,broiler door
4PANEL-DRAWER
9PAN-BROILER
10INSERT-BROILER PAN
11SCREW, 10 X 3/8
13CHANNEL-DRAWER
16WCI 318159402
20WCI 5303272274
30WCI 3017184
35WCI 5303310504
36WCI 5303935079
39WCI 5308008085
44WCI 318088300
45WCI 318024401
45WCI 318024400
605303310510 Frigidaire Oven Screw
625303013272 Frigidaire Oven Nut
