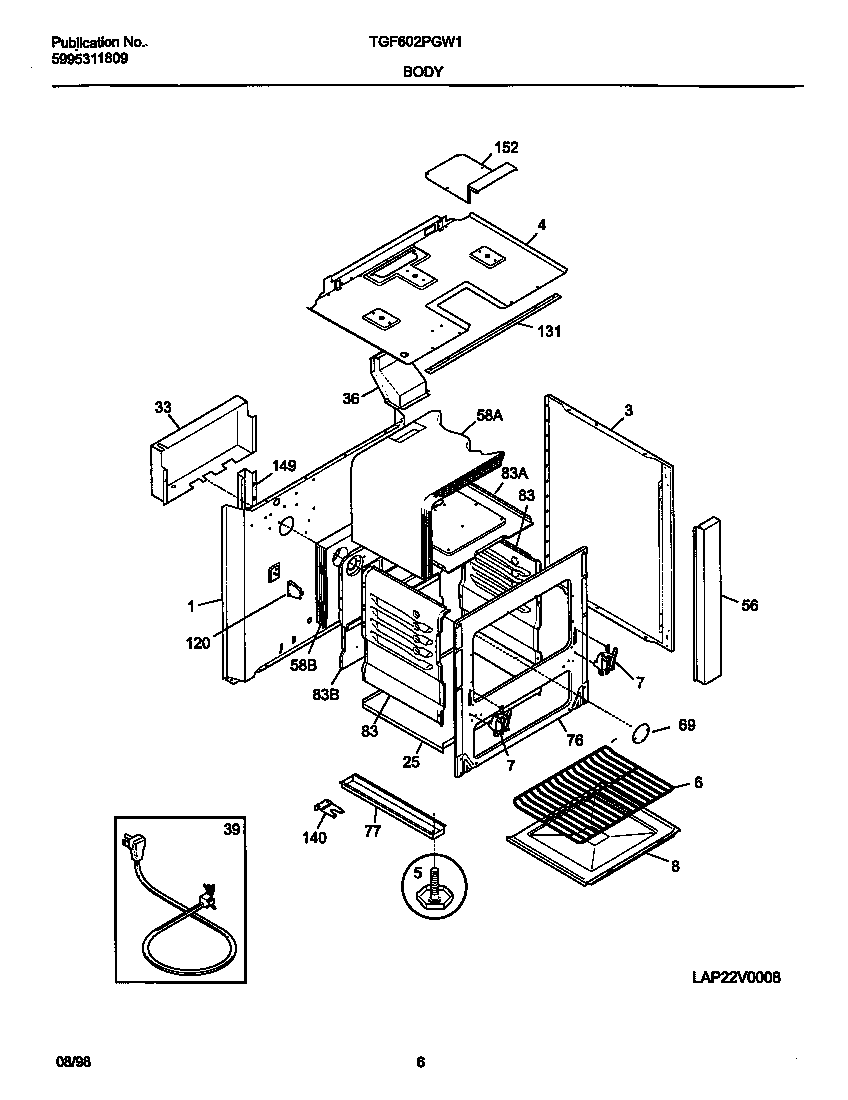

TGF602PGW1 04 – BODY

TGF602PGW1 04 – BODY

Written by

in

TGF602PGW1 04 – BODY

Products

PositionProduct
*40582WCI 316042301
*40578Rail,base ,RH
*40580WCI 5303324119
*40576SUPPORT-OVEN BOTTOM
*40586WCI 5303323146
*40572SHIELD-BURNER BOX LH
*40583WCI 08008037
*40571SHIELD-BURNER BOX RH
*40574SPRING-OVEN DOOR (2)
*40577WCI 5303299689
*40573GROMMET-MAIN TOP (NOT ILLUSTRATED)
*40579RAIL-BASE, LH
*405755300809968 Frigidaire Dishwasher P-1 Washer
*405815303284616 Frigidaire Range Bulb Clip Thermostat
*40584SCREW, 10 X 3/8
*40570ANTI-TIP KIT, (NON-ILLUSTRATED)
*40568GROMMET
*40569CLIP,BODYSIDE
*405855304464772 Frigidaire Refrigerator Wire Tie
1WCI 318076300
3BODYSIDE PANEL-WHITE (2)
4Burner Box,top
5318175503 Frigidaire Screw with Bolt
6WCI 5303311539
7WCI 3205894
7318348801 Frigidaire Oven Left Side Door Hinge
25WCI 318121700
33COVER WIRE BACK
36WCI 318089700
39WCI 5303308453
56PANEL – FILLER (WHITE)
58WCI 3017171
58WCI 3017172
69WCI 318036400
76WCI 318133900
77SUPPORT-RAIL (NOT ILLUSTRATED)
83WCI 318134200
83WCI 318134800
83WCI 318134300
83WCI 318134600
120SUPPORT-REAR OVN (2)
131Support,control panel
140BRACKET-INSTALLATION (2)
149CHANNEL – MAIN WIRE
152WCI 318135703
