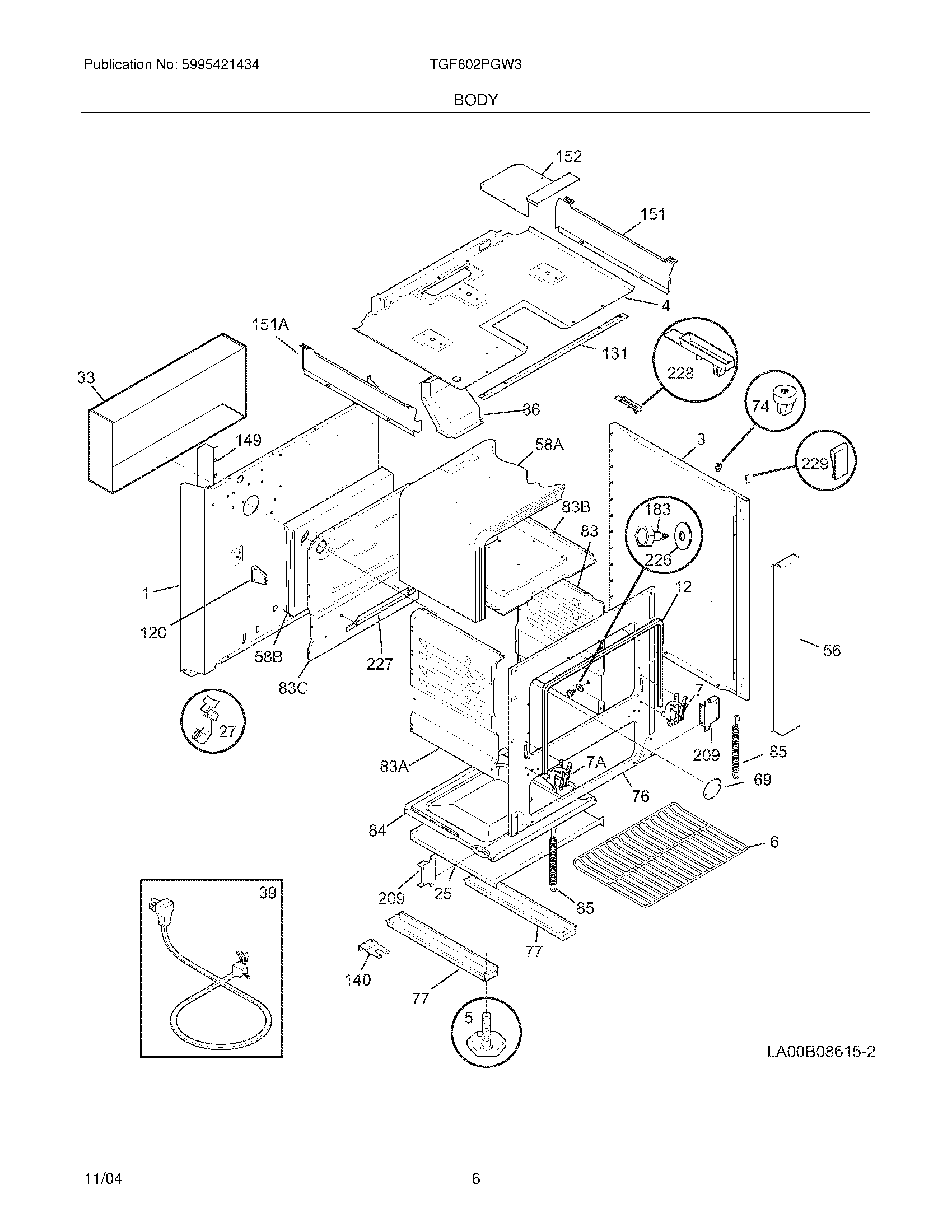

TGF602PGW3 07 – BODY

Products

Position	Product
NI	SCREW,TRUSS HEAD,8-18 X 0.375
NI	5303211311 Frigidaire Refrigerator Screw
NI	5303307980 Frigidaire Oven Screw
NI	SCREW, 10 X 3/8
1	WCI 318076301
3	BODYSIDE PANEL-WHITE (2)
4	Burner Box,top
5	318175503 Frigidaire Screw with Bolt
6	WCI 5303311539
7A	318348801 Frigidaire Oven Left Side Door Hinge
7	WCI 3205894
12	DOOR SEAL
25	WCI 318121701
27	5303284616 Frigidaire Range Bulb Clip Thermostat
33	COVER WIRE BACK
36	WCI 318089700
39	WCI 318144003
56	PANEL – FILLER (WHITE)
58B	WCI 318133713
58A	WCI 318133712
69	WCI 318036400
74	GROMMET
76	WCI 318133902
77	WCI 318166701
83C	WCI 318134800
83	WCI 318134300
83A	WCI 318134200
83B	WCI 5303324119
84	WCI 318134600
85	SPRING-OVEN DOOR (2)
120	SUPPORT-REAR OVN (2)
131	Support,control panel
140	BRACKET-INSTALLATION (2)
149	CHANNEL – MAIN WIRE
151	SHIELD-BURNER BOX LH
151	SHIELD-BURNER BOX RH
152	WCI 318135703
183	WCI 08008037
209	SUPPORT-RAIL (NOT ILLUSTRATED)
226	5300809968 Frigidaire Dishwasher P-1 Washer
227	SUPPORT-OVEN BOTTOM
228	GROMMET-MAIN TOP (NOT ILLUSTRATED)
229	CLIP,BODYSIDE
