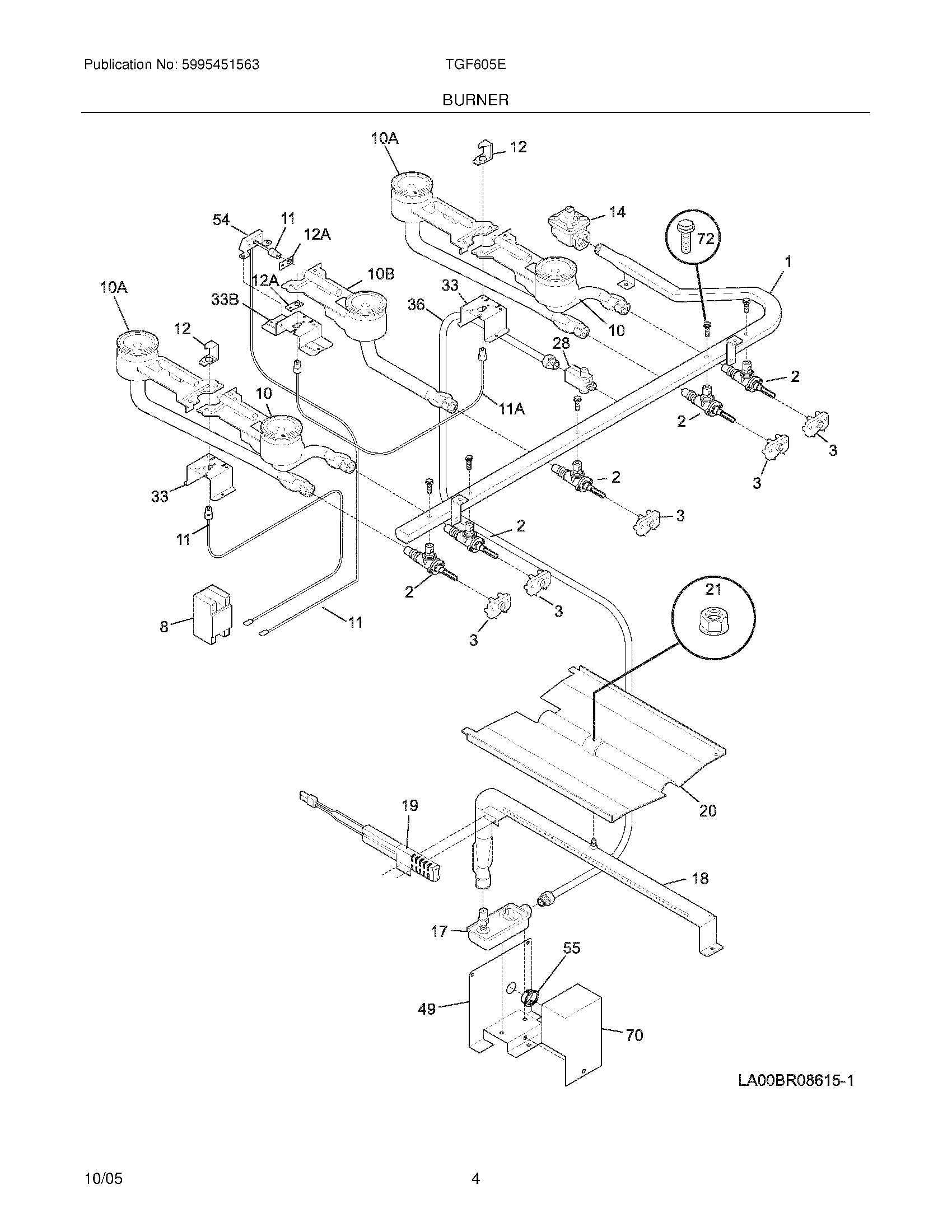

TGF605EU1 05 – BURNER

Products

Position	Product
NI	08002868 Frigidaire 0 Screw Assembly
NI	NUT, SUPPORT OVN VLV (NOT ILLUSTRATED)
NI	WCI 318340500
NI	SCREW-SHOULDER
1	WCI 318177400
2	WCI 318087100
3	WCI 318232611
8	5304518635 Frigidaire Oven Module
10B	WCI 5303311552
10	BURNER-TOP, FRONT
10A	Burner,top ,rear
11	WCI 318148504
11A	Ignitor,top burner ,front
12A	RETAINER-IGNITER, GRIDDLE
12	RETAINER-IGNITER
14	5308007974 Frigidaire Pressure Regulator
17	WCI 318087200
18	WCI 5303202752
19	5303935066 Frigidaire Oven Flat Igniter 17" Leads
20	WCI 3203676
21	5303013272 Frigidaire Oven Nut
28	WCI 318087400
33B	Bracket,burner mtg ,griddle
33	WCI 5303210471
36	WCI 318249303
49	SUPPORT-OVEN SAFETY VALVE
54	WCI 5303311553
55	WCI 5303324193
70	COVER – OVEN SAFETY VALVE
72	WCI 5303323141
