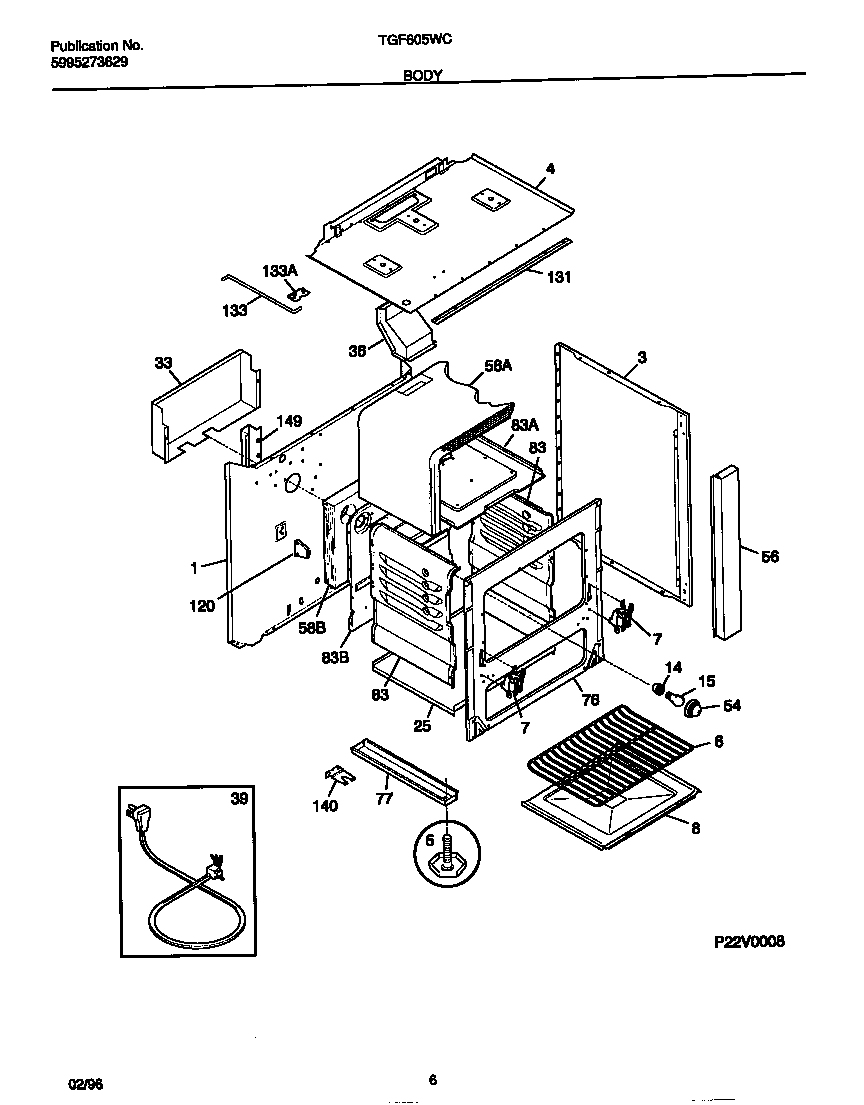

TGF605WCD1 04 – BODY

TGF605WCD1 04 – BODY

Written by

in

TGF605WCD1 04 – BODY

Products

PositionProduct
*42651WCI 08008037
*42652SCREW, 10 X 3/8
*42653WCI 5303316986
1WCI 5303311540
3DSHIELD-BURNER BOX LH
3CSHIELD-BURNER BOX RH
3EGROMMET-MAIN TOP (NOT ILLUSTRATED)
3PANEL BODYSIDE-ALMD
3BCLIP,BODYSIDE
3AGROMMET
4BURNER BOX
6WCI 5303311539
7CSPRING-OVEN DOOR (2)
7AWCI 3205894
7E5304500008 Frigidaire Oven Screw
7D5300809968 Frigidaire Dishwasher P-1 Washer
7B318348801 Frigidaire Oven Left Side Door Hinge
8BSUPPORT-OVEN BOTTOM
8ASHIELD, BOTTOM
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
25WCI 3011645
33WCI 5303311541
36FLUE
39WCI 5303308453
54WCI 3009290
56PANEL FILLER – ALMOND
58WCI 3017172
58WCI 3017171
76FRONT FRAME-OVEN
77BRAIL-BASE, LH
77ARail,base ,RH
77CSUPPORT-RAIL (NOT ILLUSTRATED)
83LINER-OVEN, BACK
83LINER-OVEN, TOP
83ALINER-OVEN, RH
83BLINER-OVEN, LH (NOT ILLUSTRATED)
120SUPPORT-REAR OVN (2)
131SUPPORT-CONTROL PANEL
133BRACKET-ROD, MAIN TOP
133ROD-TOP SUPPORT
140BRACKET-INSTALLATION (2)
149CHANNEL – MAIN WIRE
