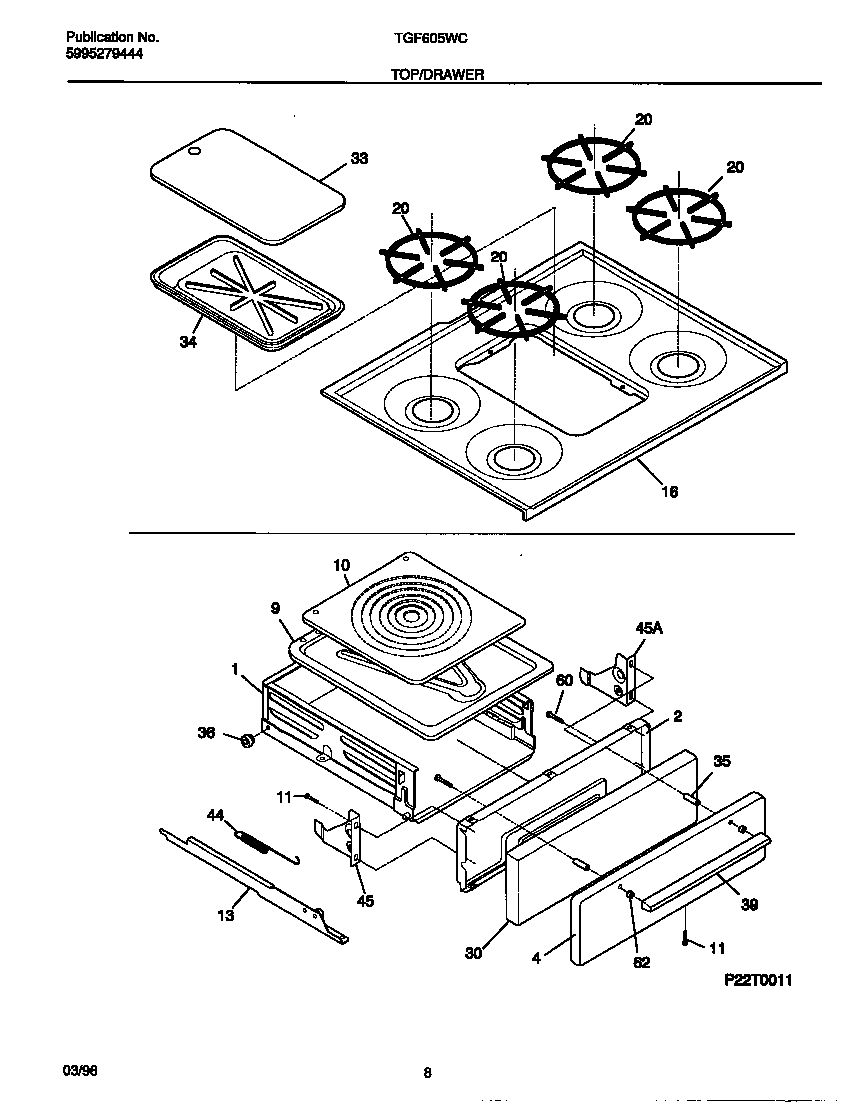

TGF605WCD2 05 – TOP/DRAWER

Products

Position	Product
*42019	WCI 5303300414
*42017	5303013272 Frigidaire Oven Nut
*42018	SCREW-SHOULDER
*42016	5300809968 Frigidaire Dishwasher P-1 Washer
1	5304504568 Frigidaire Drawer Assembly
2	Liner,broiler door
4	PANEL-DRAWER
9	PAN-BROILER
10	INSERT-BROILER PAN
11	SCREW, 10 X 3/8
13B	TRACK ASSY-LH
13A	TRACK ASSY-RH
16	WCI 08014035
16	SCREW, MAIN TOP (NOT ILLUSTRATED)
20B	WCI 5303310504
20A	WCI 5303272274
30	WCI 3017184
33	COVER-GRIDDLE, ALMOND
34	WCI 318102600
36	WCI 5303935079
39	WCI 5308008085
44	SPRING
45	WCI 5303308472
45	WCI 5303308471
60	5303310510 Frigidaire Oven Screw
