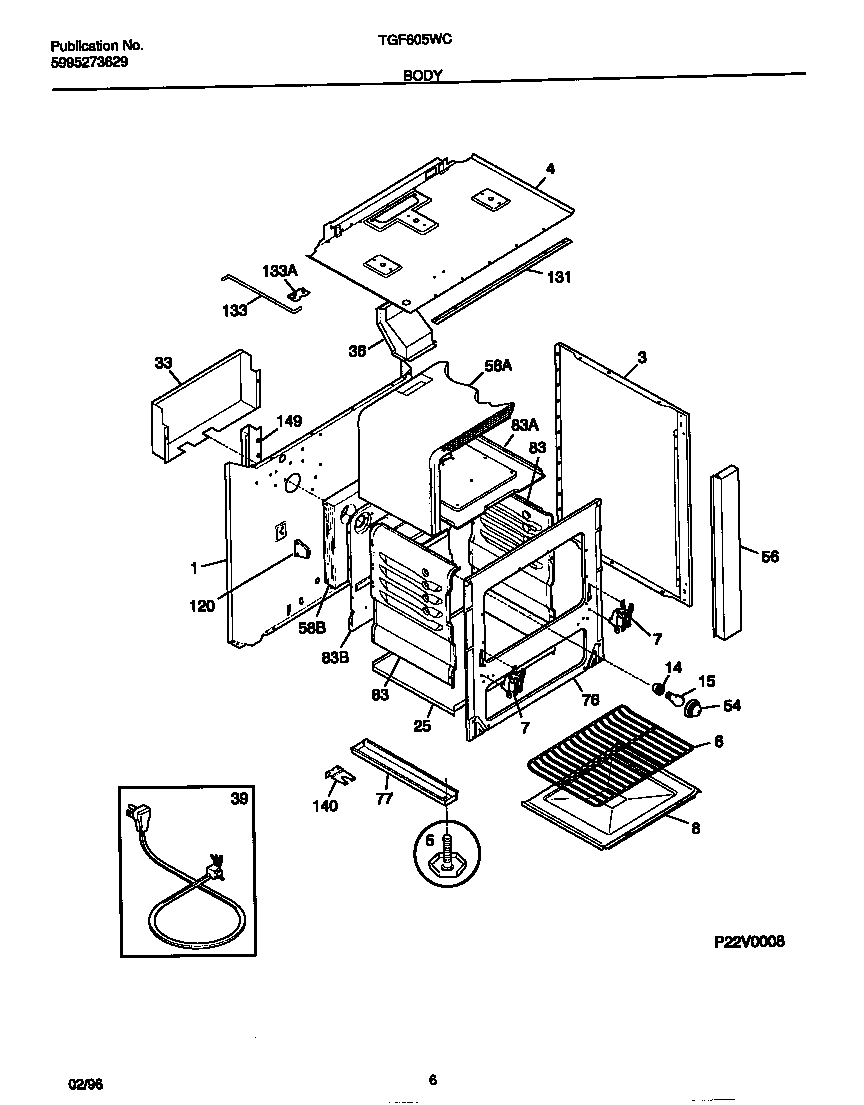

| *42651 | WCI 08008037 |
| *42652 | SCREW, 10 X 3/8 |
| *42653 | WCI 5303316986 |
| 1 | WCI 5303311540 |
| 3D | SHIELD-BURNER BOX LH |
| 3C | SHIELD-BURNER BOX RH |
| 3E | GROMMET-MAIN TOP (NOT ILLUSTRATED) |
| 3 | PANEL BODYSIDE-ALMD |
| 3B | CLIP,BODYSIDE |
| 3A | GROMMET |
| 4 | BURNER BOX |
| 6 | WCI 5303311539 |
| 7C | SPRING-OVEN DOOR (2) |
| 7A | WCI 3205894 |
| 7E | 5304500008 Frigidaire Oven Screw |
| 7D | 5300809968 Frigidaire Dishwasher P-1 Washer |
| 7B | 318348801 Frigidaire Oven Left Side Door Hinge |
| 8B | SUPPORT-OVEN BOTTOM |
| 8A | SHIELD, BOTTOM |
| 14 | 316116400 Frigidaire Oven Light Socket |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 25 | WCI 3011645 |
| 33 | WCI 5303311541 |
| 36 | FLUE |
| 39 | WCI 5303308453 |
| 54 | WCI 3009290 |
| 56 | PANEL FILLER - ALMOND |
| 58 | WCI 3017172 |
| 58 | WCI 3017171 |
| 76 | FRONT FRAME-OVEN |
| 77B | RAIL-BASE, LH |
| 77A | Rail,base ,RH |
| 77C | SUPPORT-RAIL (NOT ILLUSTRATED) |
| 83 | LINER-OVEN, BACK |
| 83 | LINER-OVEN, TOP |
| 83A | LINER-OVEN, RH |
| 83B | LINER-OVEN, LH (NOT ILLUSTRATED) |
| 120 | SUPPORT-REAR OVN (2) |
| 131 | SUPPORT-CONTROL PANEL |
| 133 | BRACKET-ROD, MAIN TOP |
| 133 | ROD-TOP SUPPORT |
| 140 | BRACKET-INSTALLATION (2) |
| 149 | CHANNEL - MAIN WIRE |
