TGF605WCDA 05 – TOP/DRAWER – Aparts

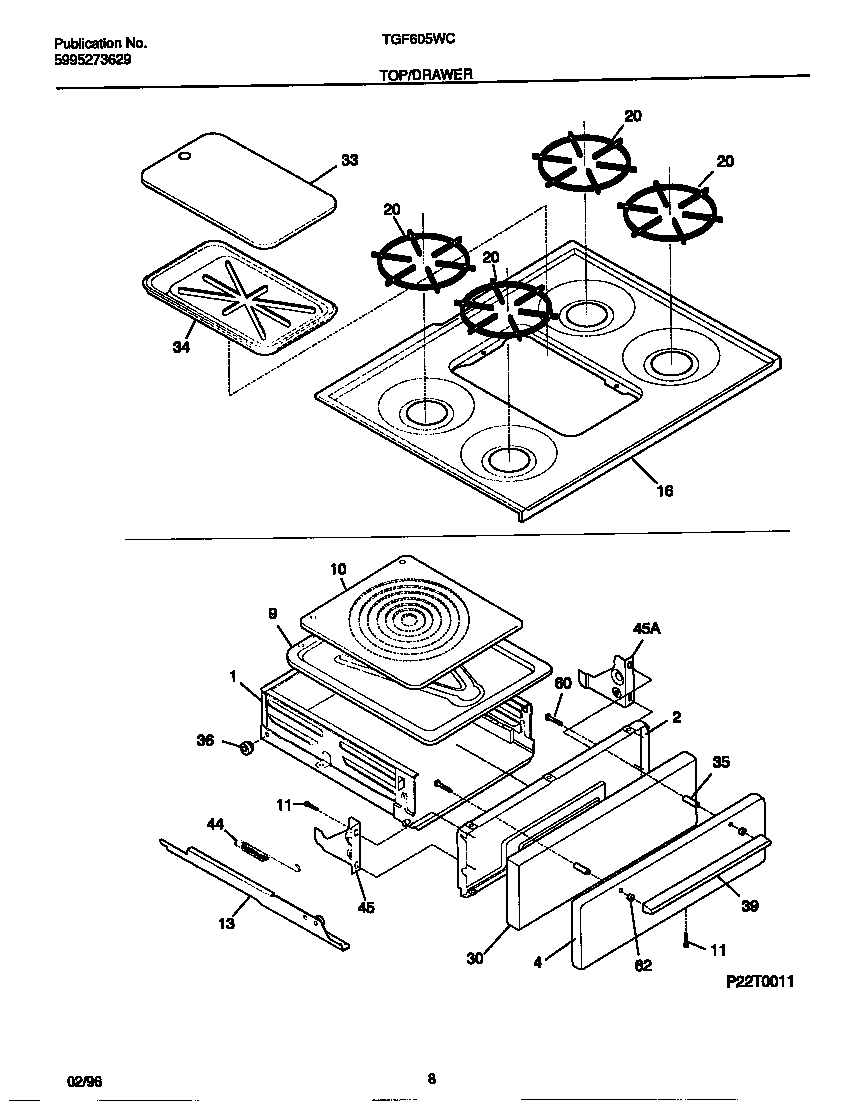

TGF605WCDA 05 – TOP/DRAWER

Products

Position	Product
*42655	SCREW, 10 X 3/8
*42654	SCREW-SHOULDER
1	5304504568 Frigidaire Drawer Assembly
2	LINER, BROILER DOOR
4	PANEL-DRAWER
9	WCI 5303286736
10	WCI 5303017712
13A	TRACK ASSY-RH
13B	TRACK ASSY-LH
16	WCI 08014035
20	WCI 5303272274
30	WCI 3017184
33	COVER-GRIDDLE, ALMOND
34	WCI 318102600
35	5303013272 Frigidaire Oven Nut
36	WCI 5303935079
39A	WCI 5308008085
39B	5303292012 Frigidaire Oven Screw
44	SPRING
45	WCI 5303308472
45	WCI 5303308471
62	WCI 5303310504
