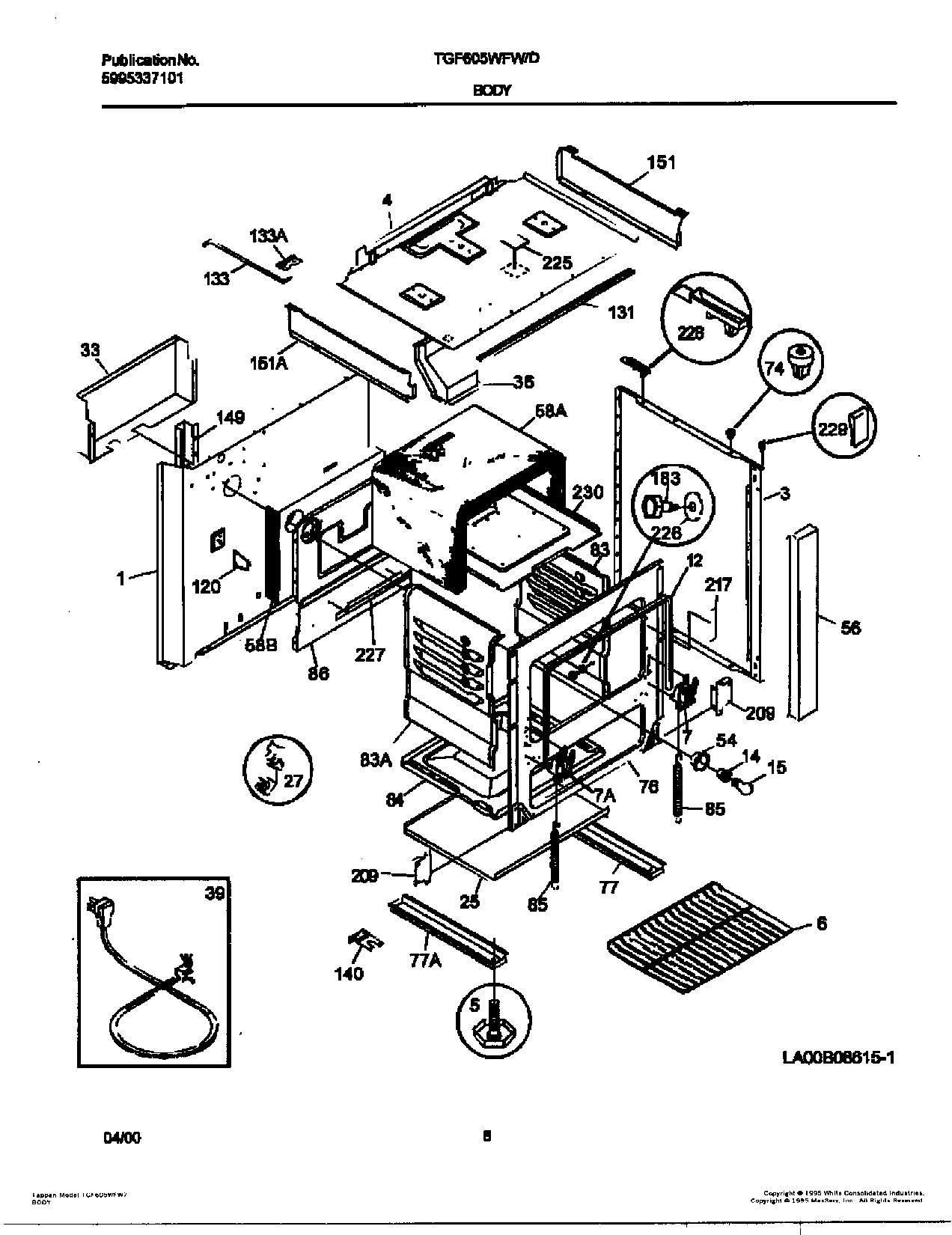

TGF605WFD7 03 – BODY

TGF605WFD7 03 – BODY

Written by

in

TGF605WFD7 03 – BODY

Products

PositionProduct
*65410SCREW,TRUSS HEAD,8-18 X 0.375
*654083201861 Frigidaire Screw
*65411SCREW, 10 X 3/8
*6540908002868 Frigidaire 0 Screw Assembly
*65412WCI 5303311528
1WCI 318076300
3PANEL BODYSIDE-ALMD
3BODYSIDE PANEL-WHITE (2)
4WCI 318133500
5318175503 Frigidaire Screw with Bolt
6WCI 5303311539
7WCI 3205894
7318348801 Frigidaire Oven Left Side Door Hinge
8SHIELD, BOTTOM
12DOOR SEAL
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
25WCI 318121700
275303284616 Frigidaire Range Bulb Clip Thermostat
33COVER WIRE BACK
36WCI 318089700
39WCI 5303308453
54WCI 5303271606
56PANEL – FILLER (WHITE)
56PANEL FILLER – ALMOND
58WCI 3017171
58WCI 3017172
74GROMMET
76WCI 318158302
77RAIL-BASE, LH
77Rail,base ,RH
83WCI 318134200
83WCI 318134300
84WCI 318134600
85SPRING-OVEN DOOR (2)
86WCI 318134800
120SUPPORT-REAR OVN (2)
131Support,control panel
133BBRACKET-ROD, MAIN TOP
133AROD-TOP SUPPORT
140BRACKET-INSTALLATION (2)
149CHANNEL – MAIN WIRE
151BSHIELD-BURNER BOX RH
151ASHIELD-BURNER BOX LH
183WCI 08008037
209SUPPORT-RAIL (NOT ILLUSTRATED)
217WCI 316042301
225REFLECTOR PLATE (NON-ILLUSTRATED)
2265300809968 Frigidaire Dishwasher P-1 Washer
227SUPPORT-OVEN BOTTOM
228GROMMET-MAIN TOP (NOT ILLUSTRATED)
229CLIP,BODYSIDE
230WCI 5303324119
