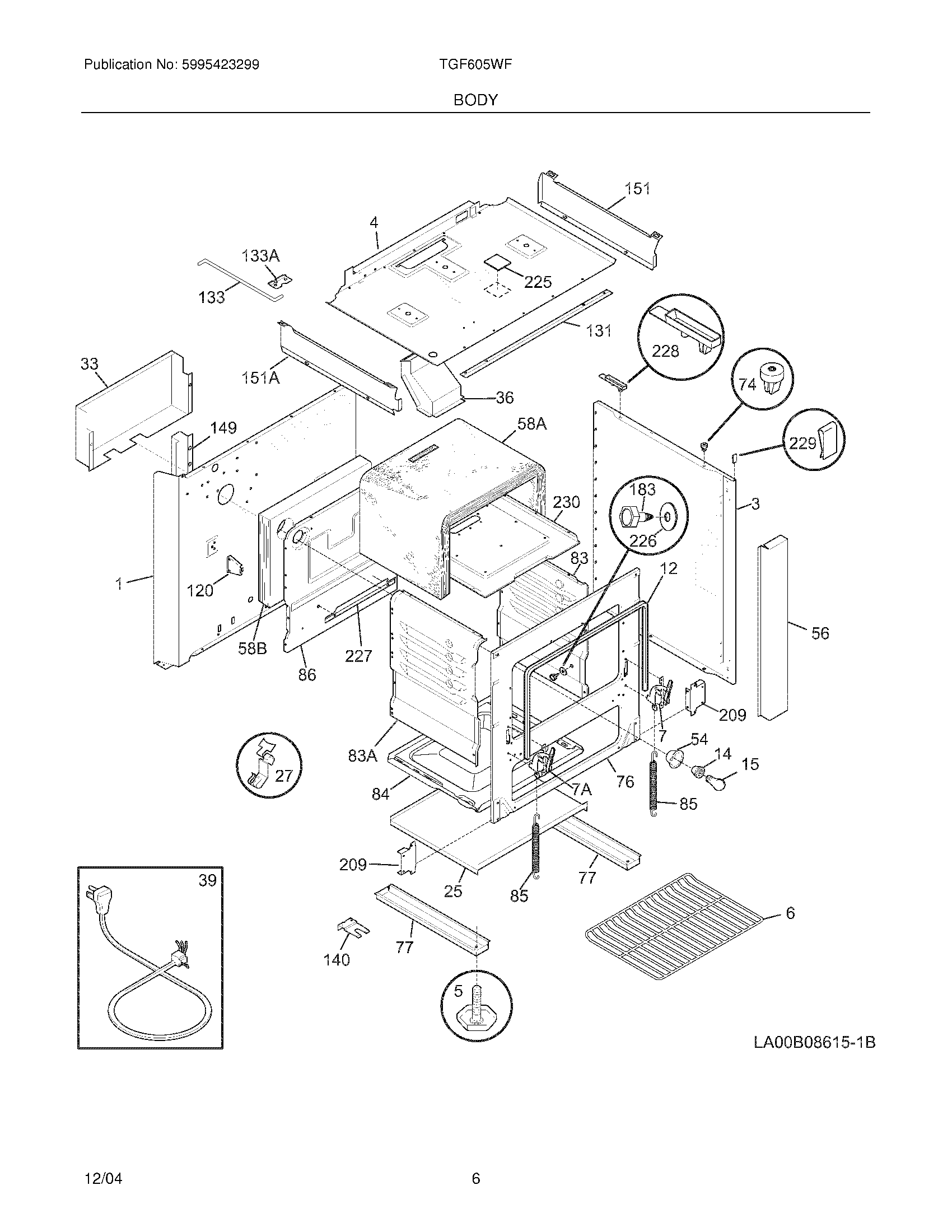

TGF605WFW8 07 – BODY

TGF605WFW8 07 – BODY

Written by

in

TGF605WFW8 07 – BODY

Products

PositionProduct
NIWCI 5303311528
NI3201861 Frigidaire Screw
NI5303013272 Frigidaire Oven Nut
1WCI 318076301
3BODYSIDE PANEL-WHITE (2)
4WCI 318133500
5318175503 Frigidaire Screw with Bolt
6WCI 5303311539
7WCI 3205894
7A318348801 Frigidaire Oven Left Side Door Hinge
12DOOR SEAL
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
25WCI 318121701
275303284616 Frigidaire Range Bulb Clip Thermostat
33COVER WIRE BACK
36WCI 318089700
39WCI 318144003
54WCI 5303271606
56PANEL – FILLER (WHITE)
58BWCI 318133713
58AWCI 318133712
74GROMMET
76WCI 318133902
77WCI 318166701
83AWCI 318134200
83WCI 318134300
84WCI 318134600
85SPRING-OVEN DOOR (2)
86WCI 318134800
120SUPPORT-REAR OVN (2)
131Support,control panel
133BRACKET-ROD, MAIN TOP
133ROD-TOP SUPPORT
140WCI 5304405240
149CHANNEL – MAIN WIRE
151SHIELD-BURNER BOX RH
151SHIELD-BURNER BOX LH
183WCI 08008037
209SUPPORT-RAIL (NOT ILLUSTRATED)
225REFLECTOR PLATE (NON-ILLUSTRATED)
2265300809968 Frigidaire Dishwasher P-1 Washer
227SUPPORT-OVEN BOTTOM
228GROMMET-MAIN TOP (NOT ILLUSTRATED)
229CLIP,BODYSIDE
230WCI 5303324119
