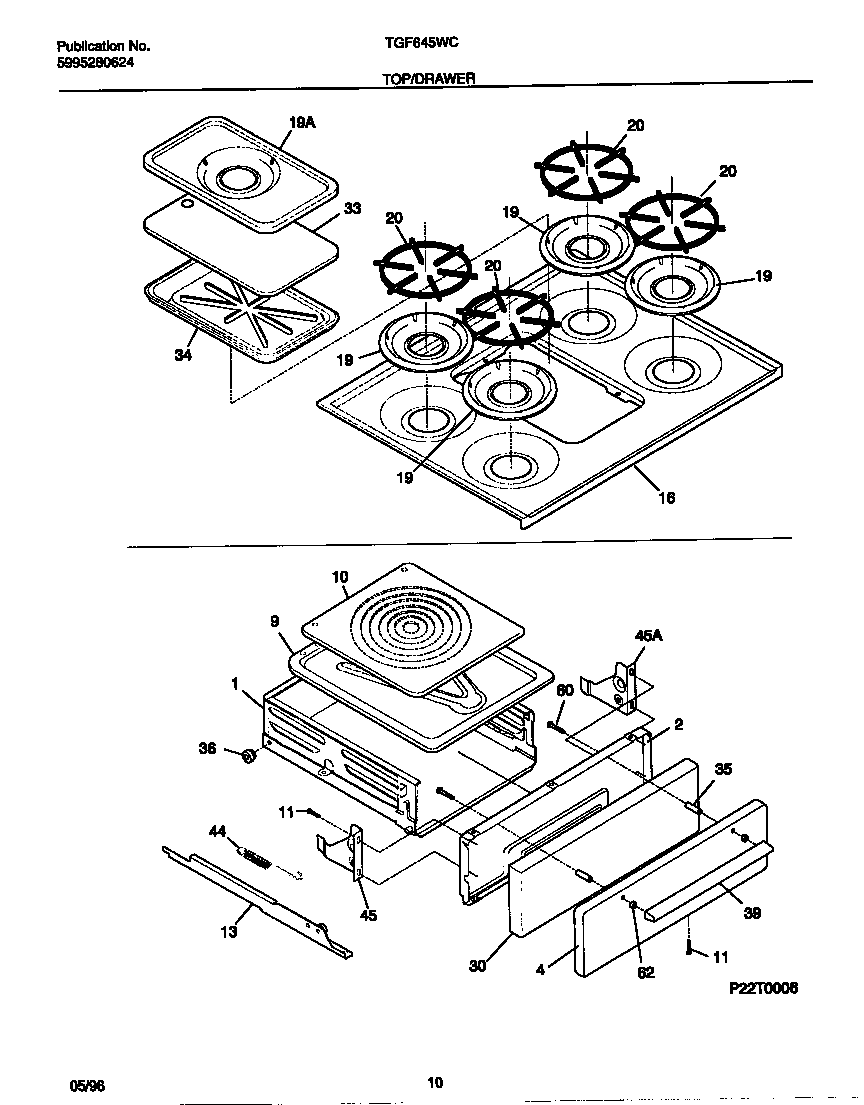

TGF645WCD3 06 – TOP/DRAWER

TGF645WCD3 06 – TOP/DRAWER

Written by

in

TGF645WCD3 06 – TOP/DRAWER

Products

PositionProduct
*486225303013272 Frigidaire Oven Nut
*48621SCREW, 10 X 3/8
*48623SCREW-SHOULDER
15304504568 Frigidaire Drawer Assembly
2LINER, BROILER DOOR
4PANEL-DRAWER
9WCI 5303286736
10WCI 5303017712
13ATRACK ASSY-RH
13BTRACK ASSY-LH
16WCI 08014035
19WCI 318067401
19WCI 5308011431
20WCI 5303272274
30WCI 3017184
33COVER-GRIDDLE, ALMOND
34WCI 318102600
36WCI 5303308457
39AWCI 5308008085
39B5303292012 Frigidaire Oven Screw
44SPRING
45WCI 5303308471
45WCI 5303308472
62WCI 5303310504
