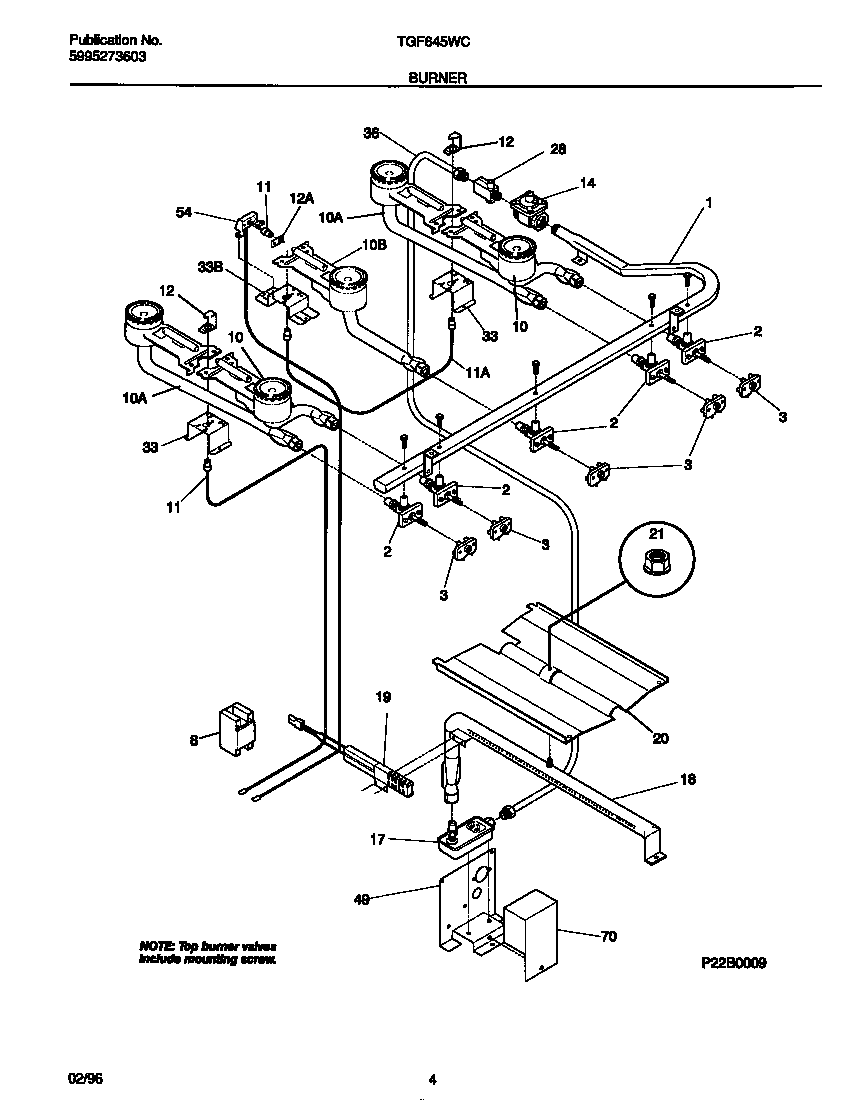

TGF645WCDA 03 – BURNER

Products

PositionProduct
*06090TERMINAL BLOCK
*06088SCREW-SHOULDER
*06087WCI 08008009
*06085SCREW, 8 X 5/8, SPARK MODULE
*0608608002868 Frigidaire 0 Screw Assembly
*06089216858001 Frigidaire Refrigerator Screw
1WCI 318078002
2B316048200 Frigidaire Oven Screw
2AWCI 316031800
3SWITCH-IGNITER, (4)
85303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
10BURNER-TOP, FRONT
10WCI 5303311552
10WCI 5303311550
11AIGNITOR-TOP BURNER, BASE
11BIgnitor,top burner ,front
12RETAINER-IGNITER
12RETAINER-IGNITER, GRIDDLE
145308007974 Frigidaire Pressure Regulator
17WCI 5308009419
18WCI 5303202752
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20WCI 3203676
215303013272 Frigidaire Oven Nut
28AWCI 5303131099
28BNUT-LOXIT (3/8)
33WCI 5303210471
33Bracket,burner mtg ,griddle
36WCI 5303316989
49ASUPPORT-OVEN SAFETY VALVE
49BNUT, SUPPORT OVN VLV (NOT ILLUSTRATED)
54WCI 5303311553
70COVER – OVEN SAFETY VALVE
