TGF645WCW2 06 – TOP/DRAWER – Aparts

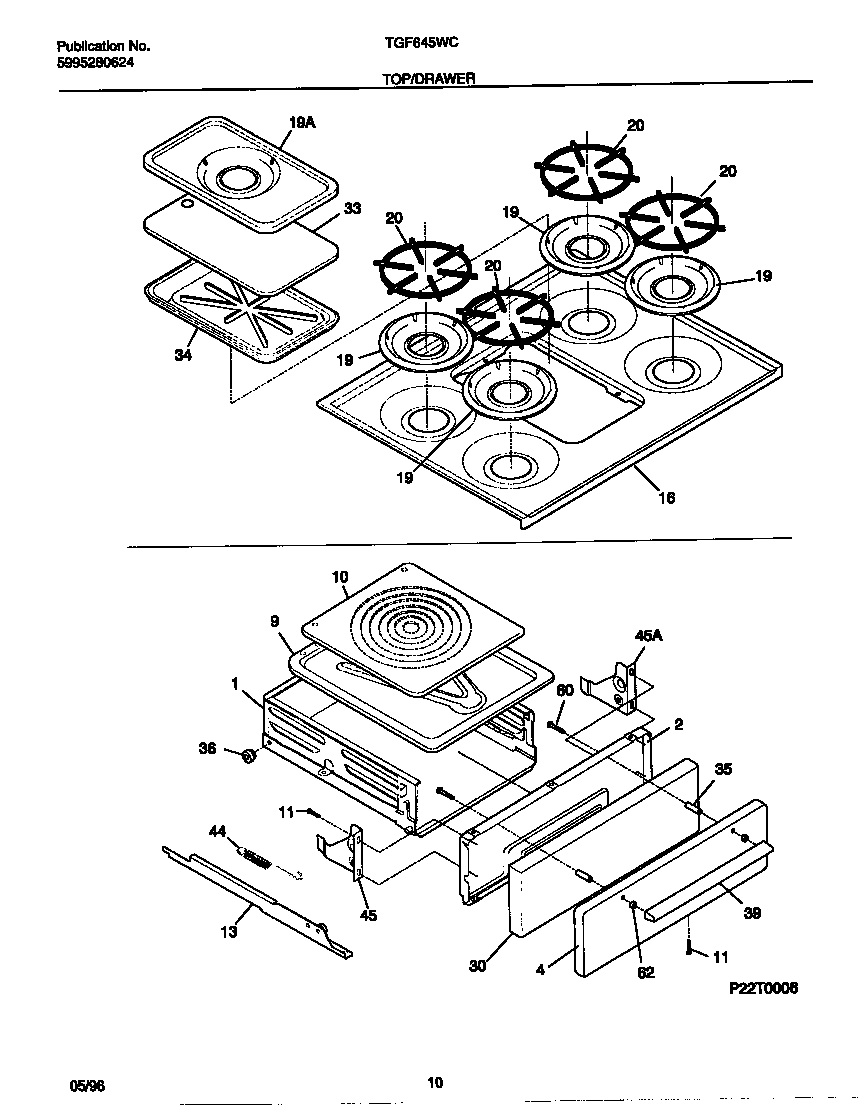

TGF645WCW2 06 – TOP/DRAWER

Products

Position	Product
*48622	5303013272 Frigidaire Oven Nut
*48621	SCREW, 10 X 3/8
*48623	SCREW-SHOULDER
1	5304504568 Frigidaire Drawer Assembly
2	LINER, BROILER DOOR
4	PANEL-DRAWER, WHITE
9	WCI 5303286736
10	WCI 5303017712
13A	TRACK ASSY-RH
13B	TRACK ASSY-LH
16	WCI 5308014034
19	WCI 318067400
19	WCI 5308011431
20	WCI 5303272274
30	WCI 3017184
33	COVER-GRIDDLE, WHITE
34	WCI 318102600
36	WCI 5303308457
39A	WCI 5308008085
39B	5303292012 Frigidaire Oven Screw
44	SPRING
45	WCI 5303308472
45	WCI 5303308471
62	WCI 5303310504
