TGF645WFD1 03 – BURNER

TGF645WFD1 03 – BURNER

Written by

in

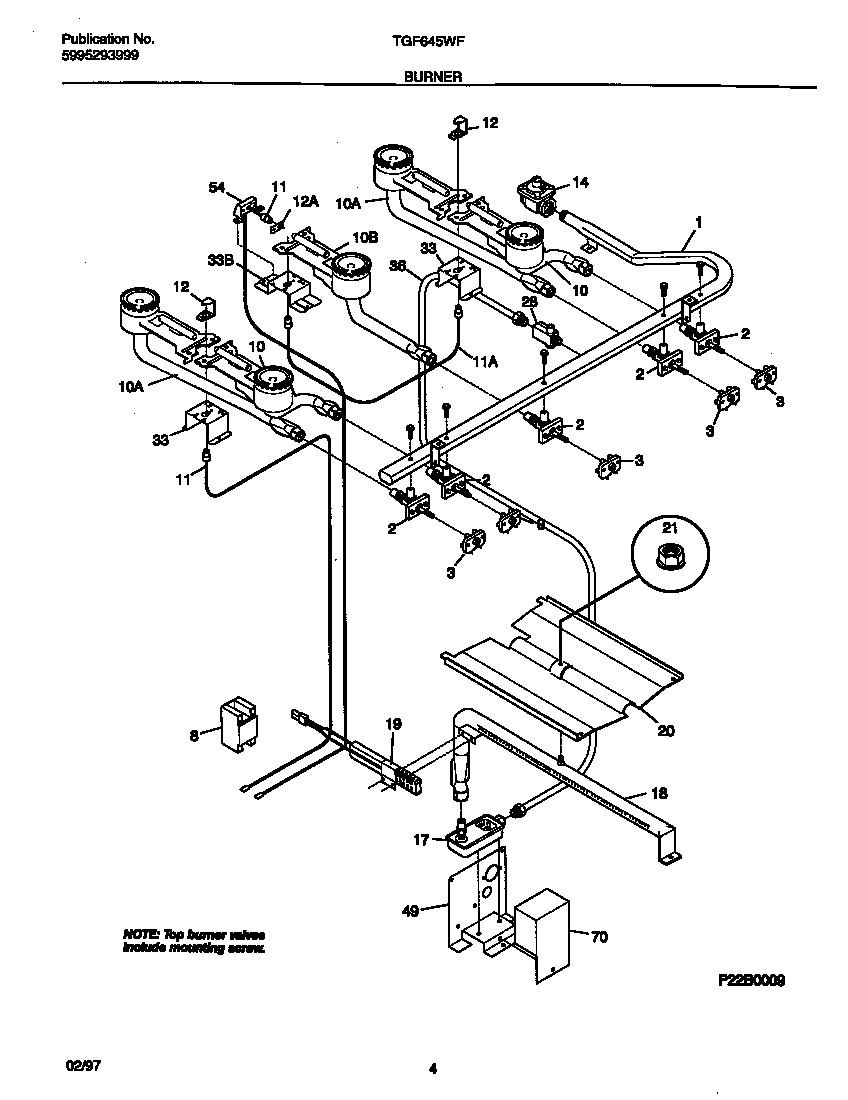

TGF645WFD1 03 – BURNER

Products

PositionProduct
*16850WCI 08008009
*16852216858001 Frigidaire Refrigerator Screw
*16851WCI 08008051
*1684908002868 Frigidaire 0 Screw Assembly
*16848SCREW, 8 X 5/8, SPARK MODULE
*16853TERMINAL BLOCK
*16847SCREW-SHOULDER
1WCI 318078002
2B316048200 Frigidaire Oven Screw
2AWCI 318087100
3SWITCH-IGNITER, (4)
85303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
10BURNER-TOP, FRONT
10WCI 5303311550
10WCI 5303311552
11Ignitor,top burner ,front
11IGNITOR-TOP BURNER, BASE
12RETAINER-IGNITER
12RETAINER-IGNITER, GRIDDLE
145308007974 Frigidaire Pressure Regulator
17WCI 5308009419
18BWCI 5303311549
18AWCI 5303202752
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20WCI 3203676
215303013272 Frigidaire Oven Nut
28WCI 5303131099
33WCI 5303210471
33Bracket,burner mtg ,griddle
36WCI 5303323849
49BNUT, SUPPORT OVN VLV (NOT ILLUSTRATED)
49ASUPPORT-OVEN SAFETY VALVE
54WCI 5303311553
70COVER – OVEN SAFETY VALVE
