TGF645WFD1 05 – TOP/DRAWER – Aparts

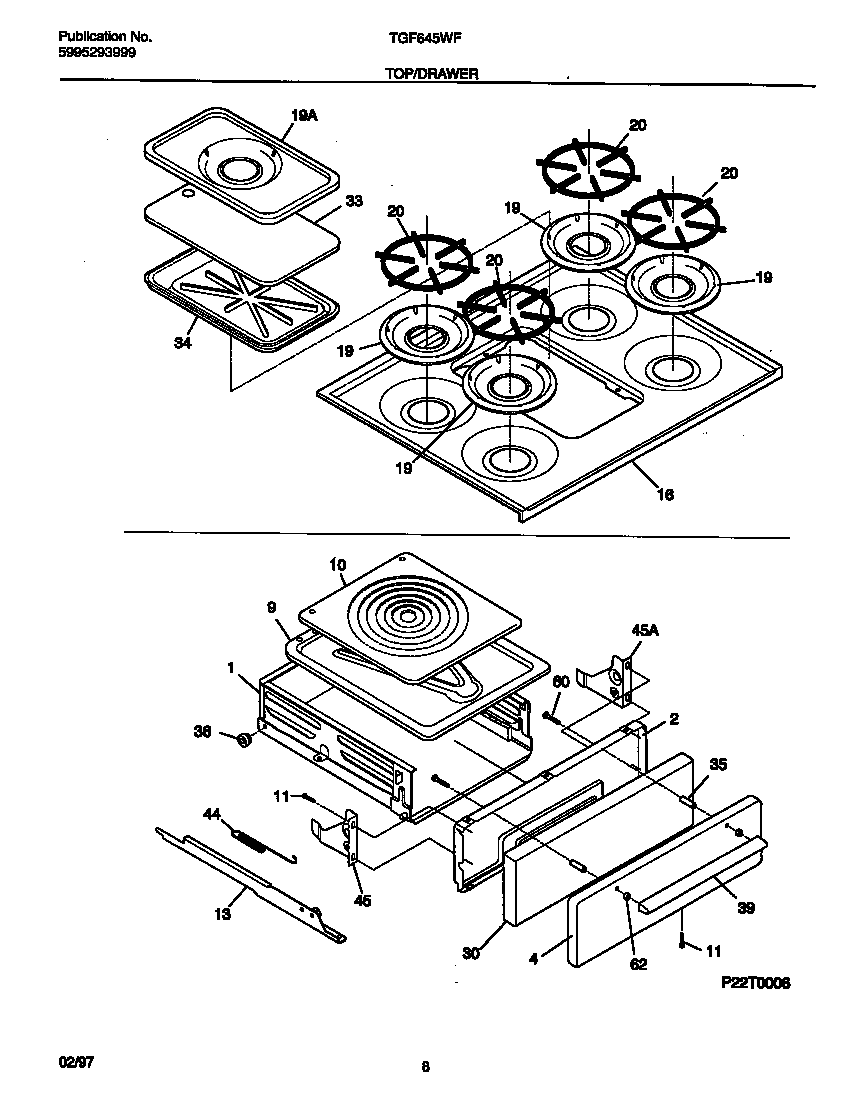

TGF645WFD1 05 – TOP/DRAWER

Products

Position	Product
*16862	RIVET-POP, WARING-PLATE
*16863	WCI 5303300414
*16861	SCREW-SHOULDER
1	5304504568 Frigidaire Drawer Assembly
2	Liner,broiler door
4	PANEL-DRAWER
9	PAN-BROILER
10	INSERT-BROILER PAN
11	SCREW, 10 X 3/8
13B	TRACK ASSY-RH
13A	TRACK ASSY-LH
16	WCI 08014035
19	WCI 318067401
19	WCI 5308011431
20	WCI 5303272274
30	WCI 3017184
33	COVER-GRIDDLE, ALMOND
34	WCI 318102600
35	WCI 5303310504
36	WCI 5303935079
39	WCI 5308008085
44	SPRING
45	WCI 5303308471
45	WCI 5303308472
60	5303310510 Frigidaire Oven Screw
62	5303013272 Frigidaire Oven Nut
