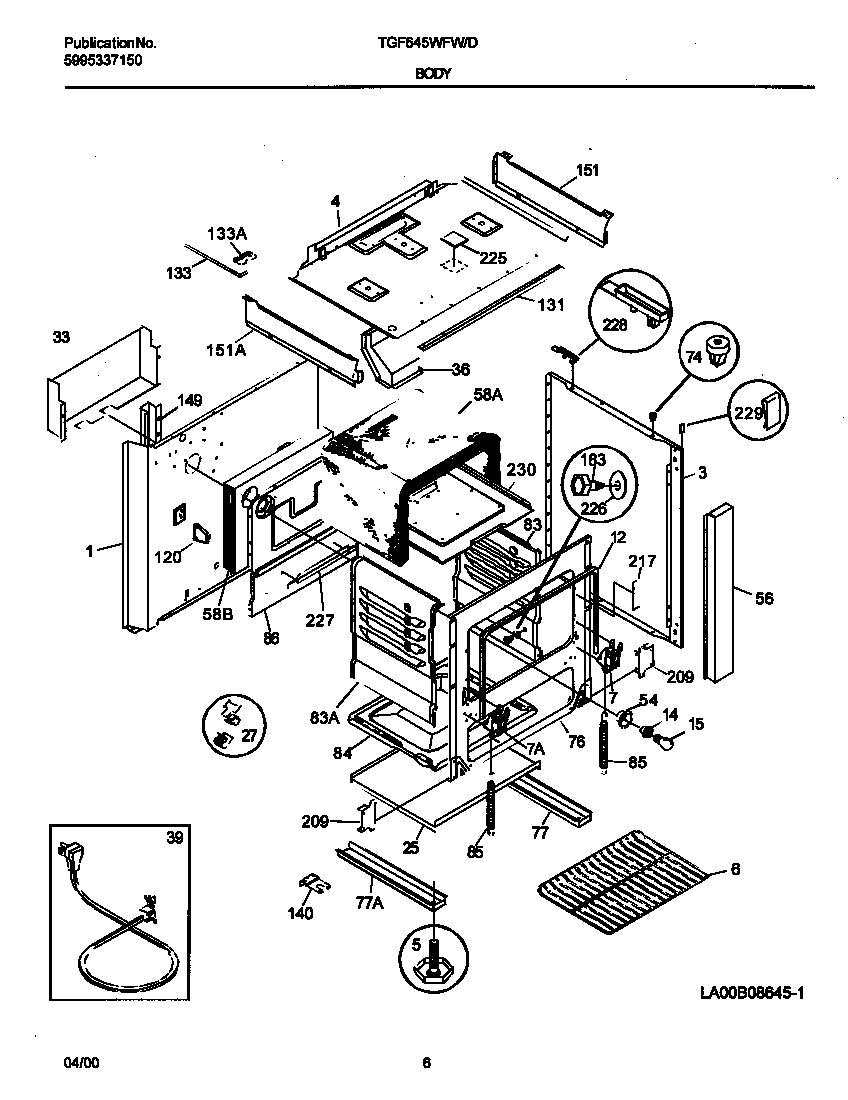

TGF645WFD7 04 – BODY

TGF645WFD7 04 – BODY

Written by

in

TGF645WFD7 04 – BODY

Products

PositionProduct
*83820SCREW,TRUSS HEAD,8-18 X 0.375
*838245303310510 Frigidaire Oven Screw
*838185300809968 Frigidaire Dishwasher P-1 Washer
*838265304500008 Frigidaire Oven Screw
*83817SCREW-SHOULDER
*83821SCREW, 10 X 3/8
*838225303211311 Frigidaire Refrigerator Screw
*838255304453707 Frigidaire Oven Screw
*8381908002868 Frigidaire 0 Screw Assembly
*83823WCI 5303300414
15304504568 Frigidaire Drawer Assembly
2Liner,broiler door
4PANEL-DRAWER
9PAN-BROILER
10INSERT-BROILER PAN
13CHANNEL-DRAWER
13CHANNEL-DRAWER
16WCI 08014035
19WCI 5308011431
19WCI 318067401
20WCI 5303272274
30WCI 3017184
34WCI 318102600
37WCI 318153200
39WCI 5308008085
44WCI 318088300
45WCI 318024400
