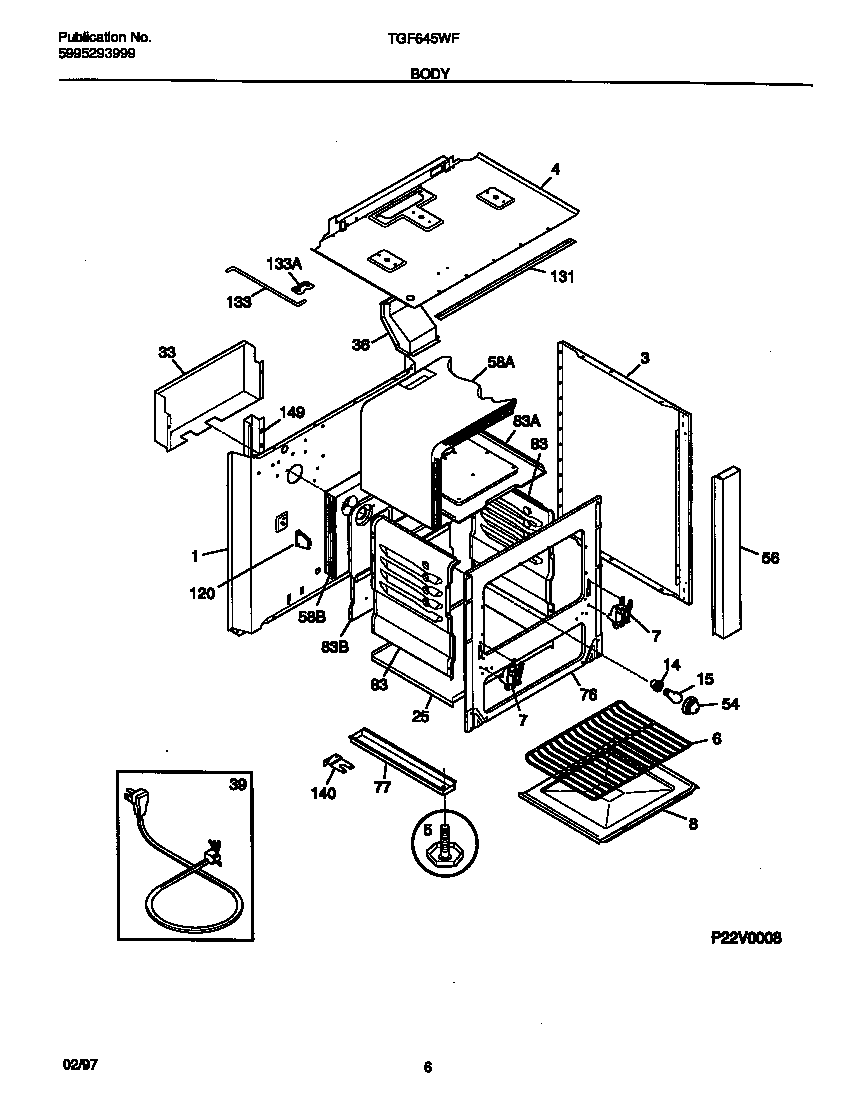

TGF645WFW1 04 – BODY

Products

PositionProduct
*168595303284616 Frigidaire Range Bulb Clip Thermostat
*16856REFLECTOR PLATE (NON-ILLUSTRATED)
*168575304500008 Frigidaire Oven Screw
*16854SCREW, 10 X 3/8
*168605304464772 Frigidaire Refrigerator Wire Tie
*16855Clip,insulator
*16858WCI 08008037
1WCI 5303311540
3AGROMMET
3BCLIP,BODYSIDE
3CANTI-TIP KIT, (NON-ILLUSTRATED)
3DSHIELD-BURNER BOX RH
3ESHIELD-BURNER BOX LH
3BODYSIDE PANEL-WHITE (2)
3FGROMMET-MAIN TOP (NOT ILLUSTRATED)
4WCI 318133500
6WCI 5303311539
7AWCI 3205894
7DSPRING-OVEN DOOR (2)
7B318348801 Frigidaire Oven Left Side Door Hinge
7C5300809968 Frigidaire Dishwasher P-1 Washer
8ASHIELD, BOTTOM
8BSUPPORT-OVEN BOTTOM
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
25WCI 3011645
33WCI 5303311541
36WCI 318089700
39AWCI 5303308453
39BWCI 08067961
54WCI 5303271606
56PANEL – FILLER (WHITE)
58BWCI 5303299689
58AWCI 3017171
58WCI 3017172
76WCI 318133900
77CSUPPORT-RAIL (NOT ILLUSTRATED)
77BRail,base ,RH
77ARAIL-BASE, LH
83WCI 5303316985
83LINER-OVEN, BACK
83BLINER-OVEN, RH
83WCI 318134600
83ALINER-OVEN, LH (NOT ILLUSTRATED)
120SUPPORT-REAR OVN (2)
131SUPPORT-CONTROL PANEL
133ROD-TOP SUPPORT
133BRACKET-ROD, MAIN TOP
140BRACKET-INSTALLATION (2)
149CHANNEL – MAIN WIRE
