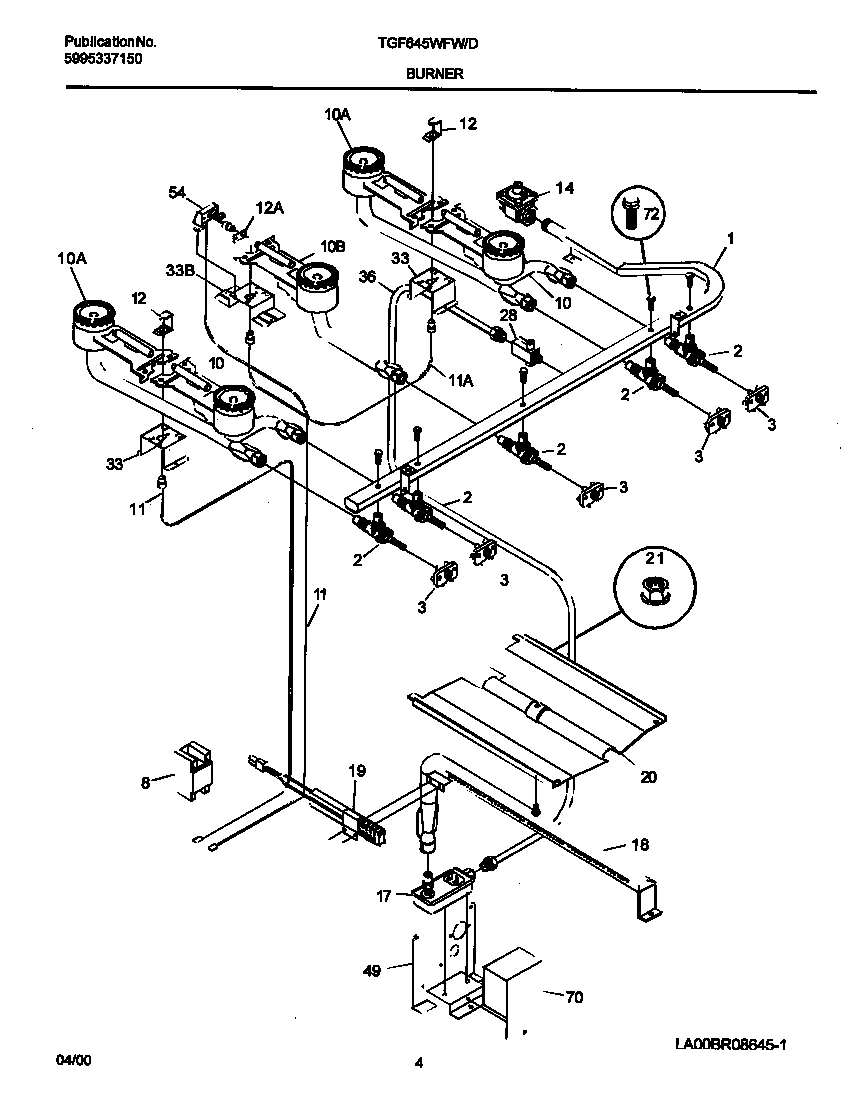

TGF645WFW7 03 – BURNER

TGF645WFW7 03 – BURNER

Written by

in

TGF645WFW7 03 – BURNER

Products

PositionProduct
*83813SCREW,TRUSS HEAD,8-18 X 0.375
*838103201861 Frigidaire Screw
*838115300809968 Frigidaire Dishwasher P-1 Washer
*83814SCREW, 10 X 3/8
*838155303211311 Frigidaire Refrigerator Screw
*8381208002868 Frigidaire 0 Screw Assembly
*83816WCI 5303311528
1WCI 318076300
3BODYSIDE PANEL-WHITE (2)
4WCI 318133500
5318175503 Frigidaire Screw with Bolt
6WCI 5303311539
7318348801 Frigidaire Oven Left Side Door Hinge
7WCI 3205894
12DOOR SEAL
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
25WCI 318121700
275303284616 Frigidaire Range Bulb Clip Thermostat
33COVER WIRE BACK
36WCI 318089700
39WCI 5303308453
54WCI 5303271606
56PANEL – FILLER (WHITE)
58WCI 3017171
58WCI 3017172
74GROMMET
76WCI 318133900
77RAIL-BASE, LH
77Rail,base ,RH
83WCI 318134301
83WCI 318134201
84WCI 318134600
85SPRING-OVEN DOOR (2)
86WCI 318134801
120SUPPORT-REAR OVN (2)
131Support,control panel
133BBRACKET-ROD, MAIN TOP
133AROD-TOP SUPPORT
140ANTI-TIP KIT, (NON-ILLUSTRATED)
140BRACKET-INSTALLATION (2)
149CHANNEL – MAIN WIRE
151ASHIELD-BURNER BOX LH
151BSHIELD-BURNER BOX RH
1765303013272 Frigidaire Oven Nut
183WCI 08008037
209SUPPORT-RAIL (NOT ILLUSTRATED)
217WCI 316042301
225REFLECTOR PLATE (NON-ILLUSTRATED)
227SUPPORT-OVEN BOTTOM
228GROMMET-MAIN TOP (NOT ILLUSTRATED)
229CLIP,BODYSIDE
230WCI 318134501
