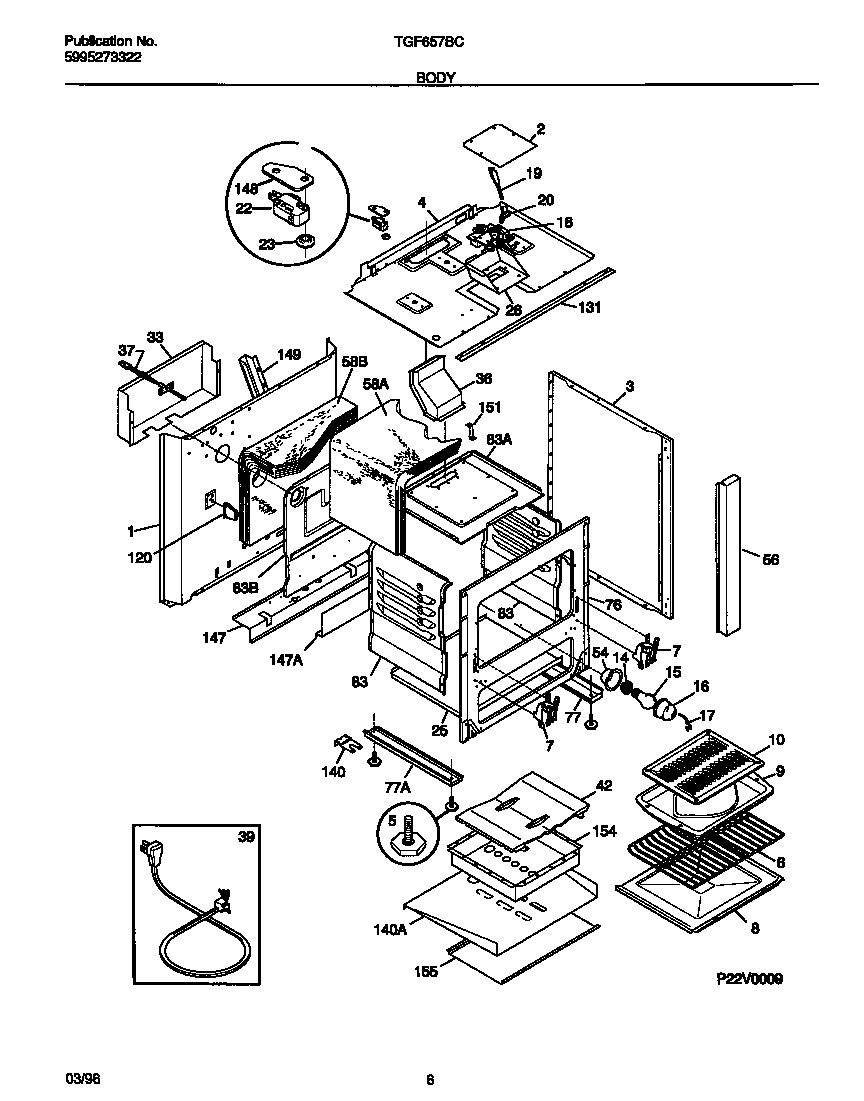

| *35565 | WCI 08068030 |
| *35568 | WCI 5303311543 |
| *35567 | WCI 5303308447 |
| *35566 | BRACKET-LOCK SWITCHES |
| 1 | WCI 5303311540 |
| 2 | SHIELD-OVEN TOP |
| 3E | GROMMET-MAIN TOP (NOT ILLUSTRATED) |
| 3D | SHIELD-BURNER BOX LH |
| 3C | SHIELD-BURNER BOX RH |
| 3A | GROMMET |
| 3 | PANEL-BODYSIDE, BLACK |
| 3B | CLIP,BODYSIDE |
| 4 | BURNER BOX |
| 6 | WCI 5303311539 |
| 7A | WCI 3205894 |
| 7C | 318088400 Frigidaire Oven Spring Assembly |
| 7B | 318348801 Frigidaire Oven Left Side Door Hinge |
| 8 | PANEL-OVEN BOTTOM |
| 9 | WCI 5303286736 |
| 10 | WCI 5303017712 |
| 14 | 316116400 Frigidaire Oven Light Socket |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16 | 5304524341 Frigidaire Lens |
| 17 | RETAINER-LENS |
| 18 | Latch,door |
| 19 | HANDLE-LATCH |
| 20 | WCI 5303212486 |
| 22 | Switch,latch |
| 23 | FASTENER, SWITCH |
| 25 | Frame-oven bottom |
| 26 | WCI 3131853 |
| 33 | WCI 5303311541 |
| 36 | FLUE |
| 37 | 5304497424 Frigidaire Oven Temperature Sensor Probe Kit |
| 39A | WCI 5303308453 |
| 39B | WCI 08067961 |
| 42 | SHIELD-BAKE BURNER |
| 54 | WCI 3009290 |
| 56 | Trim,bodyside ,black |
| 58 | WCI 5303311542 |
| 58B | WCI 5303299689 |
| 58A | WCI 5303311538 |
| 76 | FRONT-OVEN |
| 77 | Rail,base ,RH |
| 77 | RAIL-BASE, LH |
| 77 | SUPPORT-RAIL (NOT ILLUSTRATED) |
| 83 | LINER-OVEN, TOP |
| 83B | LINER-OVEN, LH |
| 83A | LINER-OVEN, RH |
| 83 | LINER-OVEN, BACK |
| 120 | SUPPORT-REAR OVN (2) |
| 131 | SUPPORT-CONTROL PANEL |
| 140 | WCI 3131820 |
| 140 | BRACKET-INSTALLATION (2) |
| 147 | SUPPORT, CONTROL VALVE |
| 147 | SUPPORT, CONTROL VALVE |
| 148 | WCI 3017411 |
| 149 | CHANNEL - MAIN WIRE |
| 151 | WCI 3131800 |
| 154 | PAN-OVEN BURNER |
| 155 | SHIELD-DRAWER |
