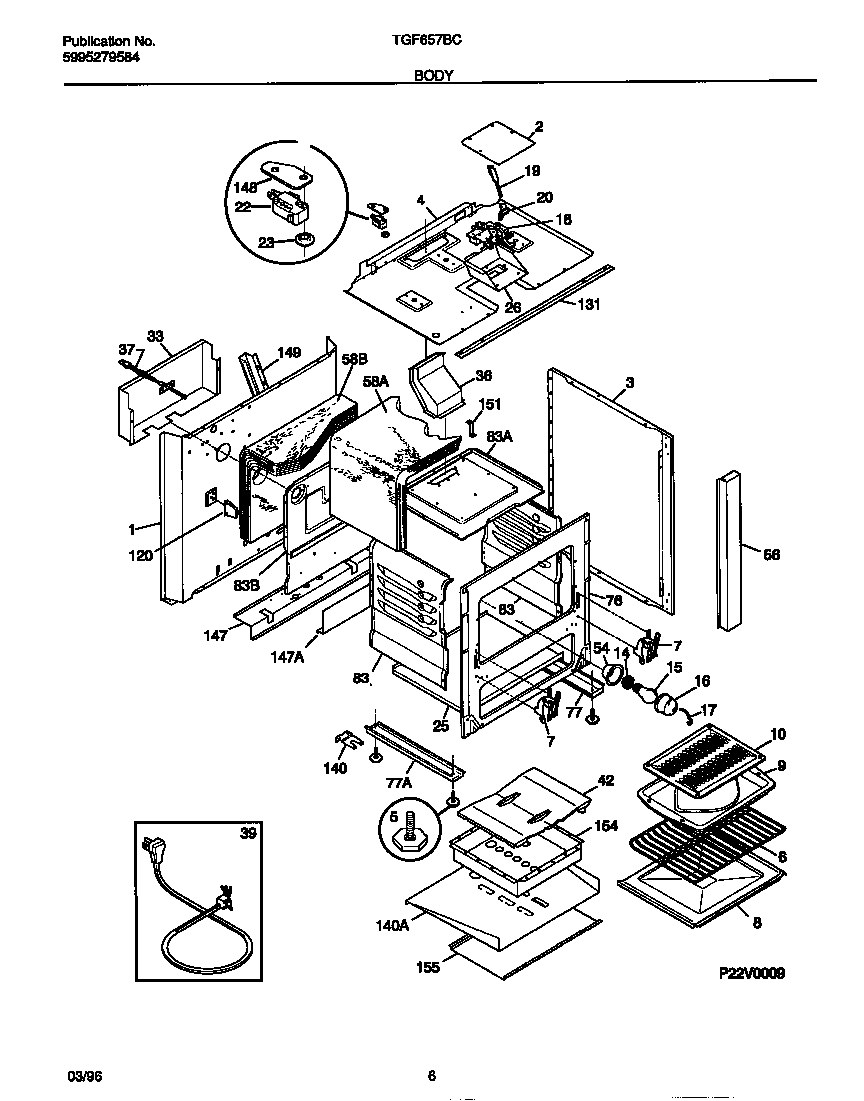

TGF657BCB2 04 – BODY

TGF657BCB2 04 – BODY

Written by

in

TGF657BCB2 04 – BODY

Products

PositionProduct
*21887WCI 08068030
*21888BRACKET-LOCK SWITCHES
*21889WCI 5303311543
*218865304500008 Frigidaire Oven Screw
1WCI 5303311540
2WCI 318135700
3PANEL-BODYSIDE, BLACK
3BCLIP,BODYSIDE
3AGROMMET
3EGROMMET-MAIN TOP (NOT ILLUSTRATED)
3CSHIELD-BURNER BOX RH
3DSHIELD-BURNER BOX LH
4WCI 318133501
6WCI 5303311539
7B318348801 Frigidaire Oven Left Side Door Hinge
7C318088400 Frigidaire Oven Spring Assembly
7AWCI 3205894
8PANEL-OVEN BOTTOM
8WCI 318135500
9WCI 5303286736
10WCI 5303017712
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-LENS
18Latch,door
19HANDLE-LATCH
20WCI 5303212486
22Switch,latch
23FASTENER, SWITCH
25Frame-oven bottom
26WCI 3131853
33WCI 5303311541
36FLUE
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
39AWCI 5303308453
39BWCI 08067961
54WCI 3009290
56Trim,bodyside ,black
58AWCI 5303311538
58BWCI 5303299689
58WCI 5303311542
76WCI 318133901
77SUPPORT-RAIL (NOT ILLUSTRATED)
77Rail,base ,RH
77RAIL-BASE, LH
83LINER-OVEN, TOP
83WCI 318135300
83AWCI 318134400
83BWCI 318134401
120SUPPORT-REAR OVN (2)
131SUPPORT-CONTROL PANEL
140WCI 3131820
140BRACKET-INSTALLATION (2)
147SUPPORT, CONTROL VALVE
147SUPPORT, CONTROL VALVE
148WCI 3017411
149CHANNEL – MAIN WIRE
151WCI 3131800
154PAN-OVEN BURNER
155SHIELD-DRAWER
