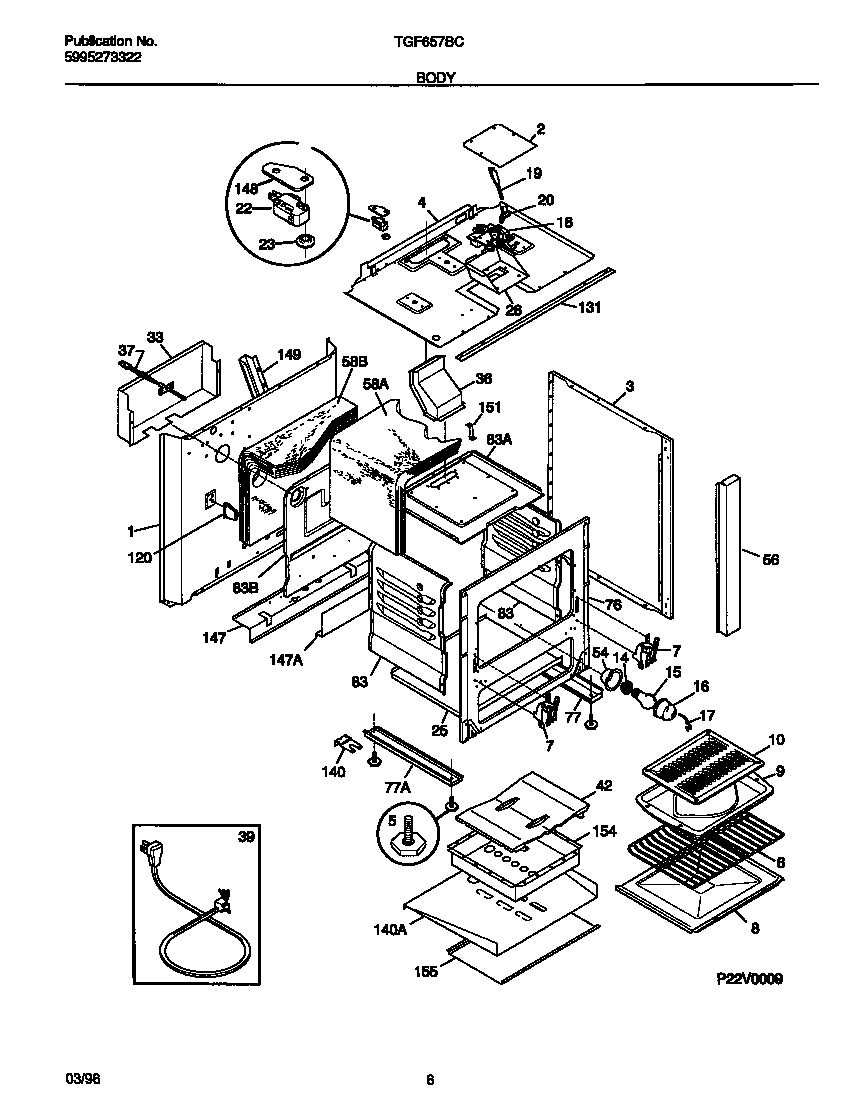

TGF657BCBA 04 – BODY

Products

PositionProduct
*35565WCI 08068030
*35568WCI 5303311543
*35567WCI 5303308447
*35566BRACKET-LOCK SWITCHES
1WCI 5303311540
2SHIELD-OVEN TOP
3EGROMMET-MAIN TOP (NOT ILLUSTRATED)
3DSHIELD-BURNER BOX LH
3CSHIELD-BURNER BOX RH
3AGROMMET
3PANEL-BODYSIDE, BLACK
3BCLIP,BODYSIDE
4BURNER BOX
6WCI 5303311539
7AWCI 3205894
7C318088400 Frigidaire Oven Spring Assembly
7B318348801 Frigidaire Oven Left Side Door Hinge
8PANEL-OVEN BOTTOM
9WCI 5303286736
10WCI 5303017712
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-LENS
18Latch,door
19HANDLE-LATCH
20WCI 5303212486
22Switch,latch
23FASTENER, SWITCH
25Frame-oven bottom
26WCI 3131853
33WCI 5303311541
36FLUE
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
39AWCI 5303308453
39BWCI 08067961
42SHIELD-BAKE BURNER
54WCI 3009290
56Trim,bodyside ,black
58WCI 5303311542
58BWCI 5303299689
58AWCI 5303311538
76FRONT-OVEN
77Rail,base ,RH
77RAIL-BASE, LH
77SUPPORT-RAIL (NOT ILLUSTRATED)
83LINER-OVEN, TOP
83BLINER-OVEN, LH
83ALINER-OVEN, RH
83LINER-OVEN, BACK
120SUPPORT-REAR OVN (2)
131SUPPORT-CONTROL PANEL
140WCI 3131820
140BRACKET-INSTALLATION (2)
147SUPPORT, CONTROL VALVE
147SUPPORT, CONTROL VALVE
148WCI 3017411
149CHANNEL – MAIN WIRE
151WCI 3131800
154PAN-OVEN BURNER
155SHIELD-DRAWER
