TGF657BCW1 05 – TOP/DRAWER

TGF657BCW1 05 – TOP/DRAWER

Written by

in

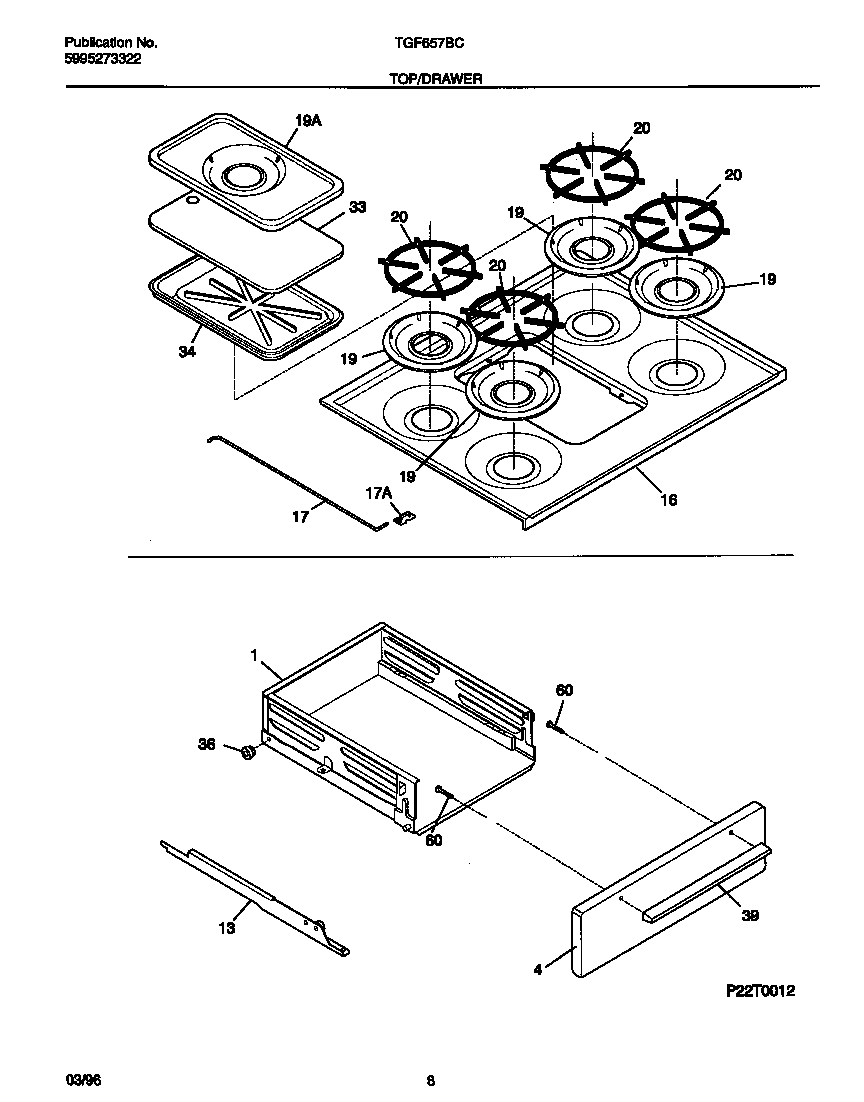

TGF657BCW1 05 – TOP/DRAWER

Products

PositionProduct
*35569SCREW-SHOULDER
*35570SCREW, MAIN TOP (NOT ILLUSTRATED)
1WCI 5303311535
4WCI 5303311536
13ATRACK ASSY-RH
13BTRACK ASSY-LH
16WCI 5308014034
17ROD-TOP SUPPORT
17BRACKET-ROD, MAIN TOP
19WCI 318067400
19WCI 5308011431
20WCI 5303272274
33COVER-GRIDDLE, WHITE
34WCI 318102600
36WCI 5303308457
39WCI 10819
60A5303310510 Frigidaire Oven Screw
60B5303013272 Frigidaire Oven Nut
