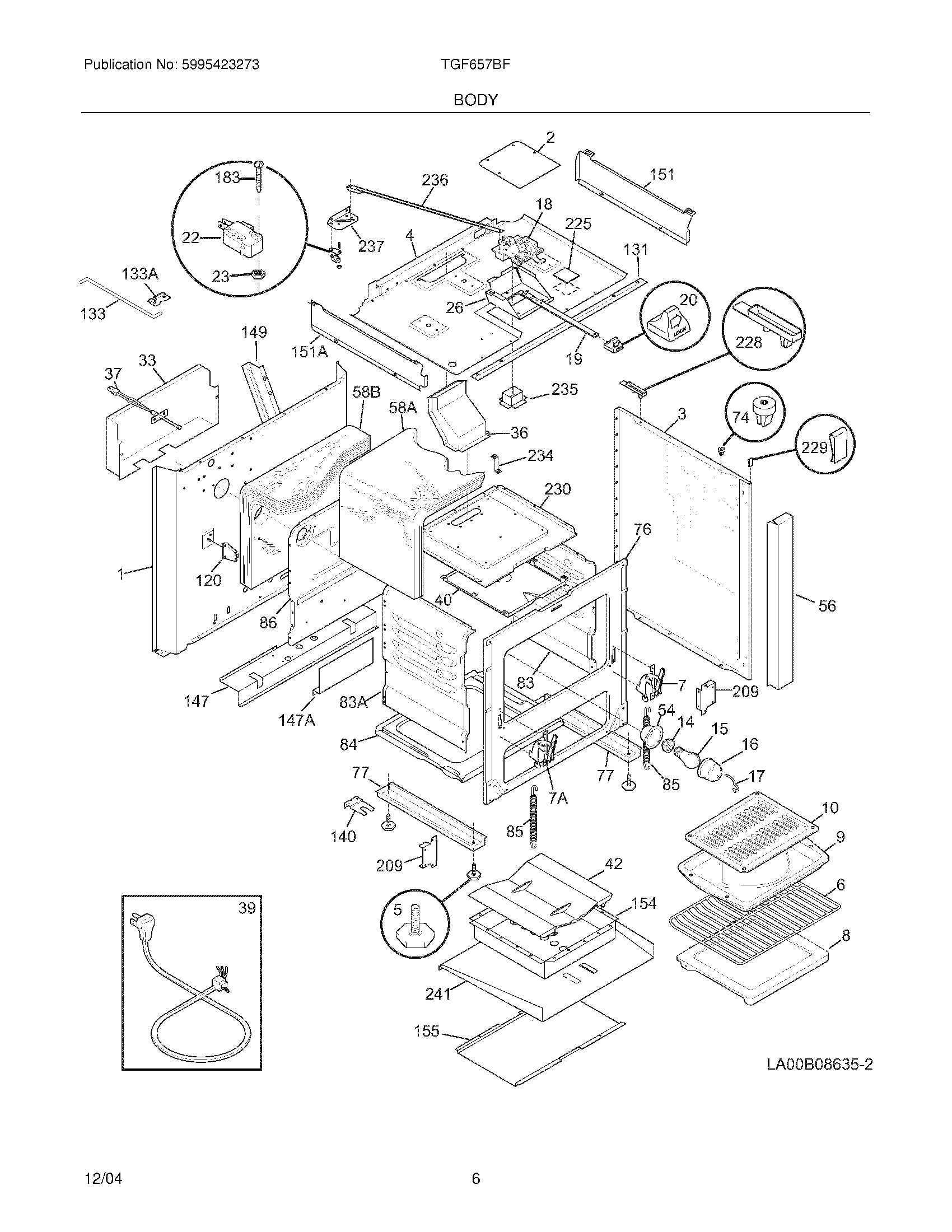

TGF657BFB6 07 – BODY

Products

Position	Product
NI	SCREW, 10 X 3/8
NI	WCI 5303324186
NI	5303211311 Frigidaire Refrigerator Screw
NI	5303013272 Frigidaire Oven Nut
NI	5304414648 Frigidaire Oven Screw
NI	5304500008 Frigidaire Oven Screw
1	WCI 318076301
2	WCI 318135700
3	PANEL-BODYSIDE, BLACK
4	WCI 318133501
5	318175503 Frigidaire Screw with Bolt
6	WCI 5303311539
7	WCI 3205894
7A	318348801 Frigidaire Oven Left Side Door Hinge
8	WCI 318135500
9	WCI 5303317977
10	WCI 5303317976
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	RETAINER-LENS
18	Latch,door
19	WCI 318198000
20	WCI 5303212486
22	Switch,latch
23	FASTENER, SWITCH
26	WCI 318168200
33	COVER WIRE BACK
36	WCI 318089700
37	WCI 318087700
39	WCI 318144003
40	WCI 318133300
42	WCI 318168700
54	WCI 5303271606
56	Trim,bodyside ,black
58B	WCI 318133717
58A	WCI 318133716
74	GROMMET
76	WCI 318133903
77	WCI 318166701
83	WCI 318134400
83A	WCI 318134401
84	PANEL-OVEN BOTTOM
85	318088400 Frigidaire Oven Spring Assembly
86	WCI 318135300
120	SUPPORT-REAR OVN (2)
131	Support,control panel
133	ROD-TOP SUPPORT
133	BRACKET-ROD, MAIN TOP
140	WCI 5304405240
147	WCI 318168400
147	SUPPORT, CONTROL VALVE
149	CHANNEL – MAIN WIRE
151	SHIELD-BURNER BOX LH
151	SHIELD-BURNER BOX RH
154	WCI 318076600
155	WCI 318160600
183	WCI 5303308447
209	SUPPORT-RAIL (NOT ILLUSTRATED)
225	REFLECTOR PLATE (NON-ILLUSTRATED)
228	GROMMET-MAIN TOP (NOT ILLUSTRATED)
229	CLIP,BODYSIDE
230	WCI 5303324119
234	WCI 3131800
235	WCI 318133201
236	WCI 318170700
236	73202-2320 Frigidaire Oven Screw
237	BRACKET-LOCK SWITCHES
241	WCI 318121200
