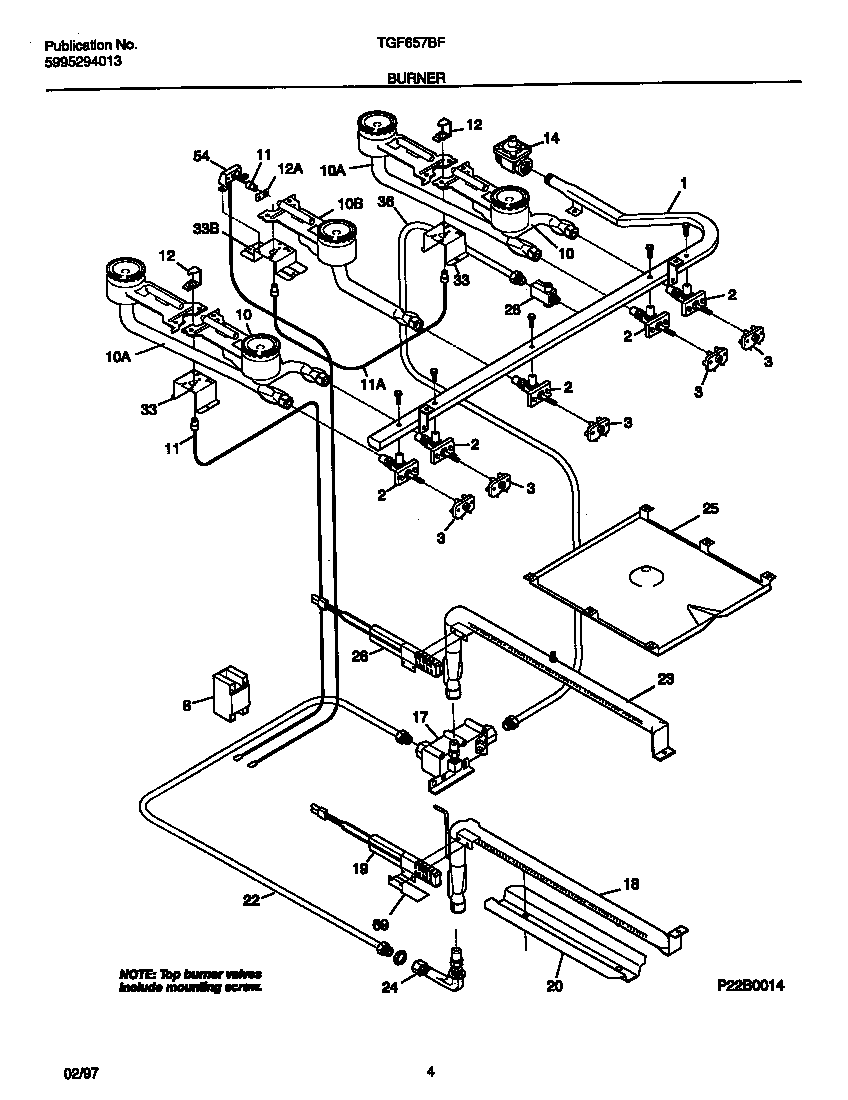

TGF657BFD1 03 – BURNER

Products

Position	Product
*24846	SCREW-SHOULDER
*24848	WCI 08008009
*24847	SCREW, 8 X 5/8, SPARK MODULE
1	WCI 318078002
2A	WCI 318087100
2B	316048200 Frigidaire Oven Screw
3	SWITCH-IGNITER, (4)
8	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
10	WCI 5303311552
10	BURNER-TOP, FRONT
10	WCI 5303311550
11	Ignitor,top burner ,front
11	IGNITOR-TOP BURNER, BASE
12	RETAINER-IGNITER
12	RETAINER-IGNITER, GRIDDLE
14	5308007974 Frigidaire Pressure Regulator
17	VALVE-SAFETY
18A	WCI 5303311544
18B	WCI 5303311549
19	5303935066 Frigidaire Oven Flat Igniter 17" Leads
20	Baffle,oven burner
22	WCI 5303311546
23	BURNER-BROILER
24	MIXER ELBOW
25	BAFFLE-BROILER
26	5303935067 Frigidaire Range Oven Flat Igniter 3-1/4"
28	WCI 5303131099
33	Bracket,burner mtg ,griddle
33	WCI 5303210471
36	WCI 5303311545
54	WCI 5303311553
69	WCI 3131871
